Filtering with kernels II - Gaussian blur, sharpening and edge detection#

This page will explore additional foundational filters which use kernels, implementing them first with NumPy and SciPy, and then with Scikit-image. As usual, we begin with some imports:

# Library imports.
import numpy as np
import matplotlib.pyplot as plt
import scipy.ndimage as ndi
import scipy.stats as sps
import skimage as ski
from mpl_toolkits.mplot3d import Axes3D

# Set 'gray' as the default colormap
plt.rcParams['image.cmap'] = 'gray'

# Set NumPy precision to 2 decimal places
np.set_printoptions(precision=2)

# Custom functions/variables for illustrations, to quickly report image
# attributes, and for exercises.
from skitut.gaussian_illustration import make_gaussian_kernel
# Utilities for mathematical display of matrices.
from skitut import show_attributes, hints, show_mat, save_load_show_mat

Gaussian filtering#

An important kernel-based filter with, let’s be honest, a pretty cool name is the Gaussian filter. You may recognise the name from the famous Gaussian distribution, which we plot below:

# Plot a normal/Gaussian distribution.
x = np.linspace(-4, 4, 10_000)
y = sps.norm().pdf(x)
plt.plot(x, y)
plt.xlabel('X value')
plt.ylabel('Probability')
plt.xticks([])
plt.yticks([]);
_images/aebde3ec89006a5b4b84be2609d94dc3987637c383b4cbc55fb0fe1f67c78366.png

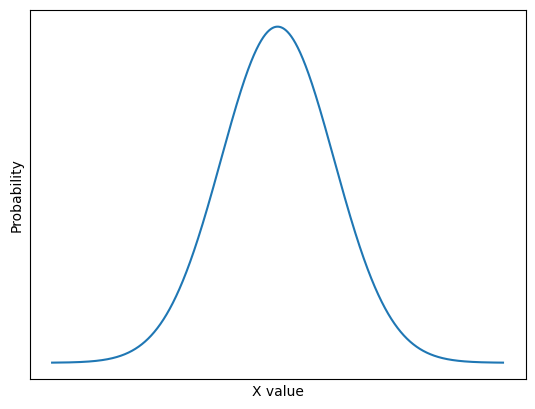

This is the well-known normal distribution, which is sometimes described as having a “bell-shape”. We will talk in more detail about this further down the page. For now, take a look at this fancy kernel:

# A fancy kernel.
gaussian_like_kernel =  np.array([[0.06, 0.12, 0.06],
                                  [0.12, 0.25, 0.12],
                                  [0.06, 0.12, 0.06]])
gaussian_like_kernel
array([[0.06, 0.12, 0.06],
       [0.12, 0.25, 0.12],
       [0.06, 0.12, 0.06]])

Imagine this kernel plotted in a 3D space. It is in the shape of (3, 3), so imagine that the “floor” of the 3D plot is a 3-by-3 grid, with the integer index labels shown in the horizontal (\(x\) and \(y\)-axis) directions. Imagine further that we plot the kernel element values in the vertical direction, up from the floor, on the \(z\)-axis.

So on this plot, in the vertical direction, our graph will be highest where the kernel values are highest (e.g. for the central element of 0.25), and lowest where the kernel elements are lowest (e.g. in the corners for the values of 0.06).

Such a plot is shown below. A red surface connects the kernel values, to make the pattern between the individual elements clearer. The kernel values themselves are shown as dark blue text. The axis ticks show the integer index location of the kernel values, in the gaussian_like_kernel NumPy array:

# Plot the fancy kernel, with a convenience function.
def kernel_plot(kernel, ax=None, surface=True, elev=30, azim=-45, text=True):
    x = np.arange(kernel.shape[0])
    y = np.arange(kernel.shape[1])
    X, Y = np.meshgrid(x, y, indexing='ij')
    Z = kernel
    if ax is None:
        fig = plt.figure(figsize=(9,9))
        ax = fig.add_subplot(111, projection='3d')
    plt_func = ax.plot_surface if surface else ax.plot_wireframe
    plt_func(X, Y, Z, color='red')
    ax.set_xticks(x)
    ax.set_yticks(y)
    ax.set_xlabel('Integer Index (axis = 0)')
    ax.set_ylabel('Integer Index (axis = 1)')
    ax.set_zlabel('Kernel Element Value', labelpad=1)
    ax.view_init(elev=elev, azim=azim)
    if azim == 0:
        ax.set_zlabel("")
        ax.set_zticks([])
    if text:
        for i in range(kernel.shape[0]):
            for j in range(kernel.shape[1]):
                ax.text(i, j, kernel[i, j],
                        str(np.round(kernel[i, j], 2)),
                        color='darkblue')

# Make the plot.
kernel_plot(gaussian_like_kernel)
_images/be80df8913987772047b30925db02768d9f55c4633c31725fc23264c00140e1e.png

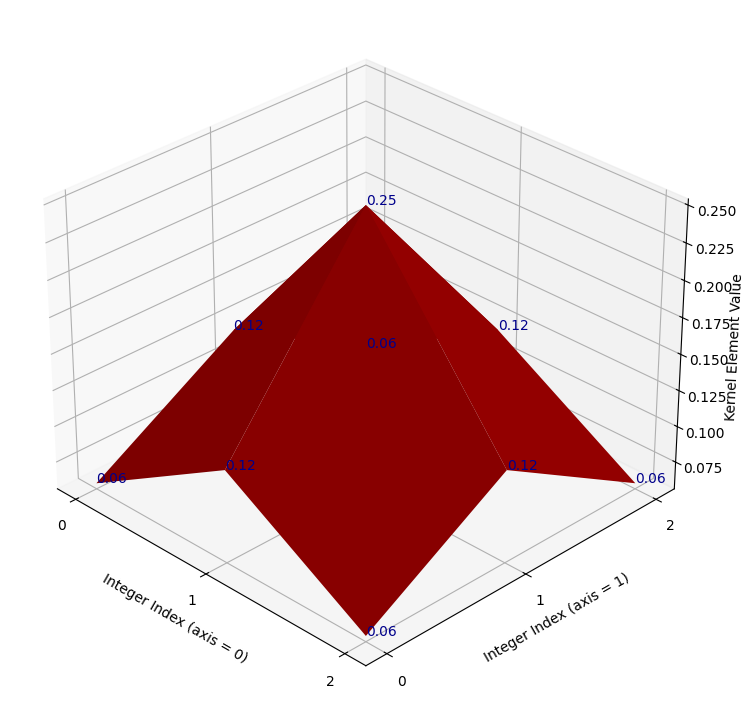

It may not be immediately apparent to some readers what this plot has to do with a Gaussian distribution. For now let’s use “Gaussian” very loosely — for now all we will take from the name is that, like a standard Gaussian distribution, at the center the kernel has high values, then the values fall off as we get nearer to the sides. Let’s warmly refer to the graph as the “red mountain”.

The kernel is shown, via the raw NumPy output, in the cell below. Compare this to the plot, to make sure you understand the visualisation. Remember that the numbers on each axis of the “floor” are the integer index locations of the NumPy array. And the vertical height of the red surface is the value of the kernel element at each row/column integer index location:

# Show the kernel again, in NumPy, for comparison to the plot.
gaussian_like_kernel
array([[0.06, 0.12, 0.06],
       [0.12, 0.25, 0.12],
       [0.06, 0.12, 0.06]])

If you prefer, you can view the NumPy array kernel with prettier graphics below:

Hide code cell source

show_mat(gaussian_like_kernel)
\[\begin{split}\displaystyle \left[\begin{matrix}0.06 & 0.12 & 0.06\\0.12 & 0.25 & 0.12\\0.06 & 0.12 & 0.06\end{matrix}\right]\end{split}\]

Just as a final comparison between the NumPy array kernel and the plot, here is the “red mountain” viewed from directly above, with the NumPy array kernel, in pretty graphics, shown to the right-hand side of the plot:

Hide code cell source

def surface_mat_pair(kernel, mat_fname, fig=None):
    if fig is None:
        fig = plt.figure(figsize=(12, 6))
    ax0 = fig.add_subplot(1, 2, 1, projection='3d')
    kernel_plot(kernel, ax=ax0, elev=90, azim=0)
    ax1 = fig.add_subplot(1, 2, 2)
    # Our own utility for making matrix display image, loading.
    mat_img = save_load_show_mat(kernel, mat_fname)
    ax1.imshow(mat_img,
               origin='upper',
               aspect='equal')
    ax1.xaxis.set_label_position('top')
    ax1.xaxis.tick_top()
    ax1.set_xlabel('Integer index (axis = 1)')
    ax1.set_ylabel('Integer index (axis = 0)')
    # Set tick labels and positions as if for matrix indices.
    pad_factors = [0.05, 0.1]  # To account for margins
    for ax_name, ax_ind in zip(('y', 'x'), (0, 1)):
        kern_ax_len = kernel.shape[ax_ind]
        mat_ax_len = mat_img.shape[ax_ind]
        p_f = pad_factors[ax_ind]
        step = mat_ax_len / (kern_ax_len + p_f)
        tick_pos = np.arange(step * (0.5 + p_f), mat_ax_len, step)
        getattr(ax1, f'set_{ax_name}ticks')(tick_pos)
        getattr(ax1, f'set_{ax_name}ticklabels')(range(kern_ax_len))
    # Turn off spines for matrix display.
    for position in ('left', 'right', 'top', 'bottom'):
        ax1.spines[position].set_visible(False)
    fig.subplots_adjust(left=0.0, right=1, wspace=0)
    plt.tight_layout()

surface_mat_pair(gaussian_like_kernel, 'images/gaussian_kernel_2.png')
/home/runner/work/skimage-tutorials-temp/skimage-tutorials-temp/skitut/displutils.py:23: UserWarning: No LaTeX installation; cannot save. Loading existing file "images/gaussian_kernel_2.png"
  warn('No LaTeX installation; cannot save. '

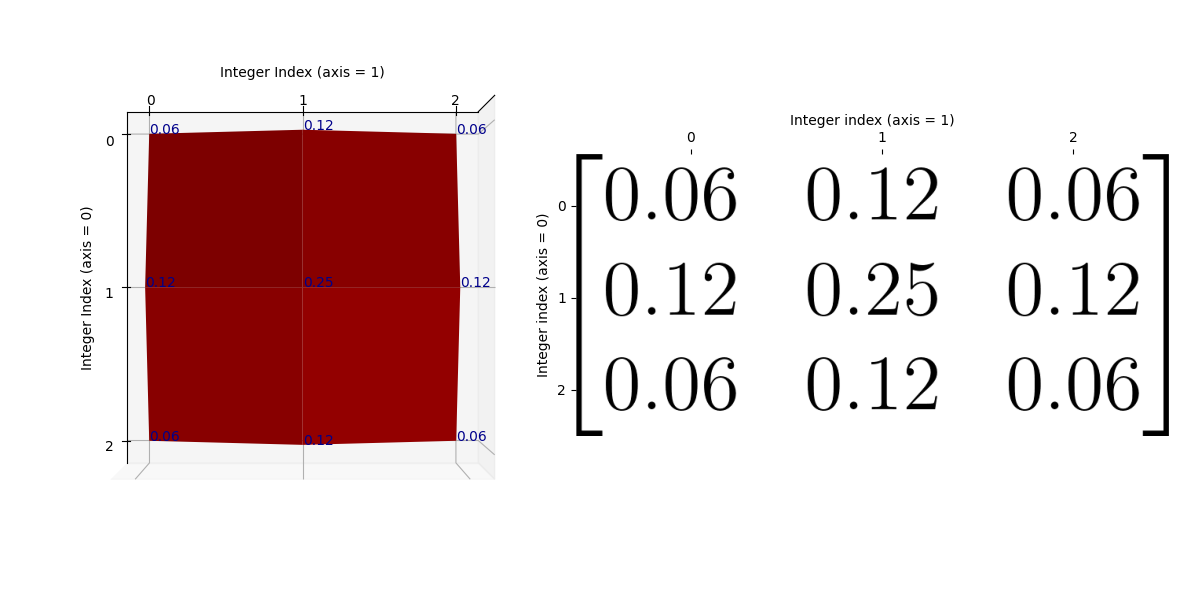

_images/6dae9afa3fb2b6b228fe476a6691262288d80c95c5340b97bf782c37dbc1ad04.png

Remember that the kernel has only 9 values (shown as blue text on the plot), so there are no values in between the array values. If you prefer, we can visualise the kernel using a wireframe, to make it clearer that there are no values in between the kernel elements (e.g. in between the points where there is blue text):

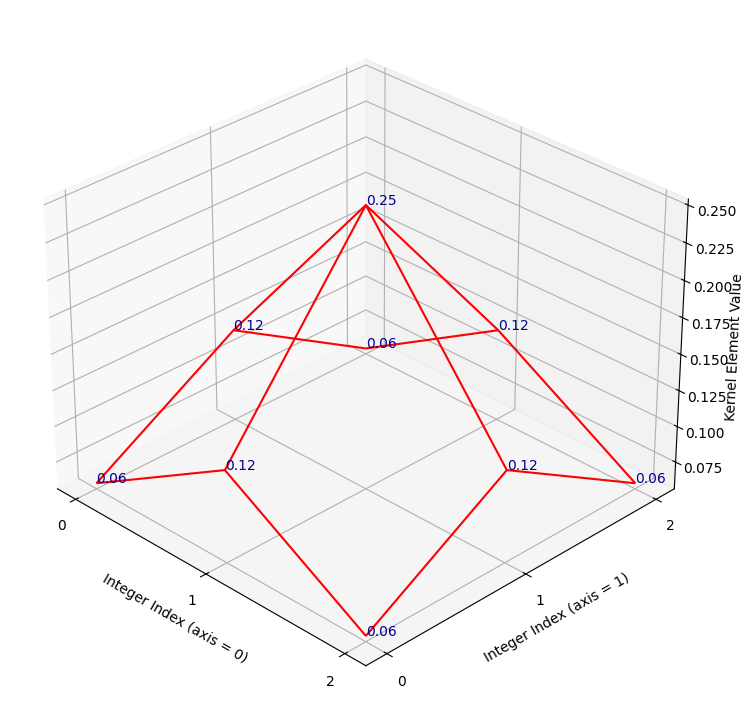

# Plot the fancy kernel.
kernel_plot(gaussian_like_kernel, surface=False)
_images/825dd5d5319e78e3b8eeedbae6b0d0d89de2a29d344028643813eef233d480f3.png

Let’s refer to the highest point on this kernel surface as the “crimson peak”.[1]. The crimson peak is the central kernel element of 0.25, at row/column integer index location [1, 1]:

# The central kernel value, at the crimson peak - check that you can also see
# this on the graph above.
gaussian_like_kernel[1, 1]
np.float64(0.25)

Essentially, if we filter using this kernel, we “walk” this kernel through the image, with the top of the “crimson peak” centered on a given pixel. The central pixel value is then replaced with an average of the pixels in the neighborhood, but the contribution of the other pixels in the neighborhood to the average is weighted by the height of the “red mountain” at that pixel.

So array pixels which fall under higher points of the kernel’s “red mountain” will exert more influence on the weighted average, and pixels falling under lower points will exert a weaker influence. The central pixel, laying under the crimson peak, will exert the most influence on the weighted average.

Let’s use this kernel to filter the following image array:

# Make a small image array.
small_square = np.zeros((20, 20))
small_square[9:11, 9:11] = 1
small_square
array([[0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 1., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 1., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.],
       [0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0.]])

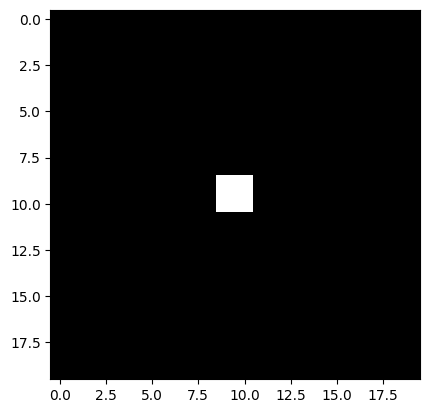

plt.imshow(small_square);
_images/0f01889c6ec77d687b7b1292e7cee1e74a6ddb5b3552d0e4430392bb7e4e67cc.png

We use use scipy.ndimage.correlate() to “walk” our kernel over every pixel in the image, multiply each array pixel value under the kernel by the corresponding kernel value, then take the sum of the result to replace the central pixel value:

# Apply the `gaussian_like_kernel` to filter the image.
gaussian_like_filtered_small_square = ndi.correlate(small_square,
                                                    weights=gaussian_like_kernel)

# Plot comparison images.
plt.figure(figsize=(12, 4))
plt.subplot(1, 3, 1)
plt.title('Original')
plt.imshow(small_square)
plt.subplot(1, 3, 2)
plt.title('Gaussian-like Filter \n(3, 3) Kernel')
plt.imshow(gaussian_like_filtered_small_square);
_images/e8a4c836f088a781bda6b2072826ca1afdecba14f301e6310c6cf27f06aaa38a.png

Blurry! So to recap, we have averaged within a 3-by-3 pixel neighborhood, replacing the central pixel value with a weighted average of all the pixel values in the neighborhood. The weights are larger for pixels closer to the central value of the kernel (e.g. closer to the center of the “crimson peak” on the plot above).

Filtering with this type of kernel is called Gaussian filtering because the kernel element values approximate a Gaussian (e.g. normal) distribution. The plot of the kernel above, with the “red mountain” may not look much like the normal distribution to you at the moment, but bear with us.

To see the Gaussian nature of this filtering operation, let’s take a look at another, larger kernel below - it has shape (9, 9):

# Another kernel.
big_gaussian_kernel = make_gaussian_kernel(9)
np.round(big_gaussian_kernel, 2)
array([[0.  , 0.  , 0.  , 0.  , 0.  , 0.  , 0.  , 0.  , 0.  ],
       [0.  , 0.  , 0.  , 0.01, 0.01, 0.01, 0.  , 0.  , 0.  ],
       [0.  , 0.  , 0.01, 0.02, 0.03, 0.02, 0.01, 0.  , 0.  ],
       [0.  , 0.01, 0.02, 0.05, 0.07, 0.05, 0.02, 0.01, 0.  ],
       [0.  , 0.01, 0.03, 0.07, 0.09, 0.07, 0.03, 0.01, 0.  ],
       [0.  , 0.01, 0.02, 0.05, 0.07, 0.05, 0.02, 0.01, 0.  ],
       [0.  , 0.  , 0.01, 0.02, 0.03, 0.02, 0.01, 0.  , 0.  ],
       [0.  , 0.  , 0.  , 0.01, 0.01, 0.01, 0.  , 0.  , 0.  ],
       [0.  , 0.  , 0.  , 0.  , 0.  , 0.  , 0.  , 0.  , 0.  ]])

Can you see any pattern in the arrangement of the numbers? Where are the high numbers, where are the low numbers? The big_gaussian_kernel NumPy array is shown below, in prettier form, to aid your ruminations:

show_mat(big_gaussian_kernel)
\[\begin{split}\displaystyle \left[\begin{matrix}0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0\\0.0 & 0.0 & 0.0 & 0.01 & 0.01 & 0.01 & 0.0 & 0.0 & 0.0\\0.0 & 0.0 & 0.01 & 0.02 & 0.03 & 0.02 & 0.01 & 0.0 & 0.0\\0.0 & 0.01 & 0.02 & 0.05 & 0.07 & 0.05 & 0.02 & 0.01 & 0.0\\0.0 & 0.01 & 0.03 & 0.07 & 0.09 & 0.07 & 0.03 & 0.01 & 0.0\\0.0 & 0.01 & 0.02 & 0.05 & 0.07 & 0.05 & 0.02 & 0.01 & 0.0\\0.0 & 0.0 & 0.01 & 0.02 & 0.03 & 0.02 & 0.01 & 0.0 & 0.0\\0.0 & 0.0 & 0.0 & 0.01 & 0.01 & 0.01 & 0.0 & 0.0 & 0.0\\0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0\end{matrix}\right]\end{split}\]

We will also plot this kernel in 3D, as with the last kernel. Again, the integer index locations of the array form the horizontal (\(x\) and \(y\)) axis values, and the values within the array are plotted on the vertical (\(z\)) axis.

# Show the new, bigger Gaussian kernel.
kernel_plot(big_gaussian_kernel, text=False)
_images/48e8632d7b54821fac5a73d15761b4132aeb9b8dedbbbff9d95839098a2483df.png

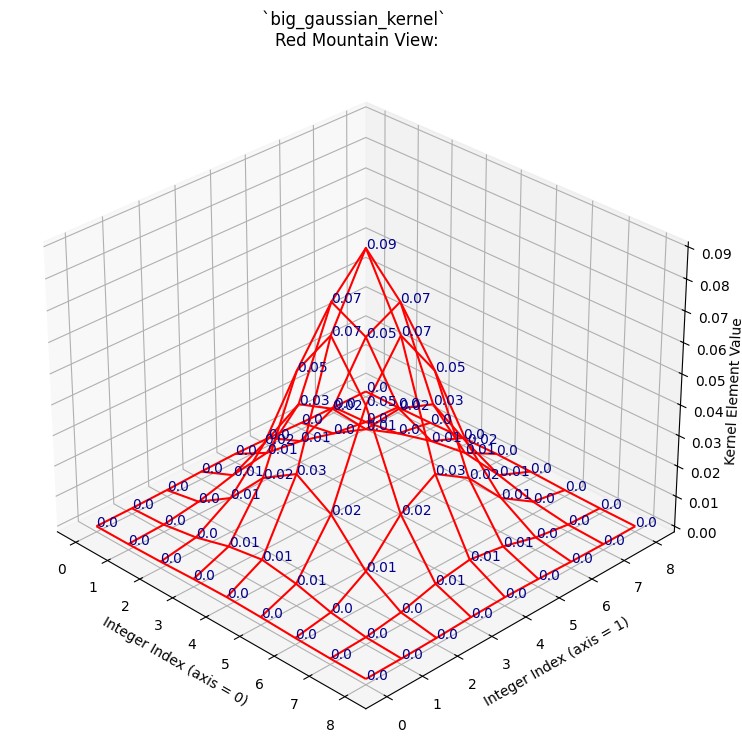

Again, if you prefer, we can view the kernel as a wireframe plot, which we show in the cell below. We first show the NumPy view of the array again, above the plot. The plot looks messy when the kernel element values (blue text) are also shown, but we show them for easy comparison to the big_gaussian_kernel NumPy array. If you are running interactively, you can set text=False in the plotting function and re-run the cell, to switch the blue numbers off, if you wish:

# Compare the NumPy array to the plot.
print("\n`big_gaussian_kernel` NumPy view:\n\n", np.round(big_gaussian_kernel, 2))
kernel_plot(big_gaussian_kernel, surface=False)
plt.title('`big_gaussian_kernel` \nRed Mountain View:');
`big_gaussian_kernel` NumPy view:

 [[0.   0.   0.   0.   0.   0.   0.   0.   0.  ]
 [0.   0.   0.   0.01 0.01 0.01 0.   0.   0.  ]
 [0.   0.   0.01 0.02 0.03 0.02 0.01 0.   0.  ]
 [0.   0.01 0.02 0.05 0.07 0.05 0.02 0.01 0.  ]
 [0.   0.01 0.03 0.07 0.09 0.07 0.03 0.01 0.  ]
 [0.   0.01 0.02 0.05 0.07 0.05 0.02 0.01 0.  ]
 [0.   0.   0.01 0.02 0.03 0.02 0.01 0.   0.  ]
 [0.   0.   0.   0.01 0.01 0.01 0.   0.   0.  ]
 [0.   0.   0.   0.   0.   0.   0.   0.   0.  ]]
_images/755c736f51e5851b0a977e1214ddcec1361505c030e1e6e154e684dbb4768faf.png

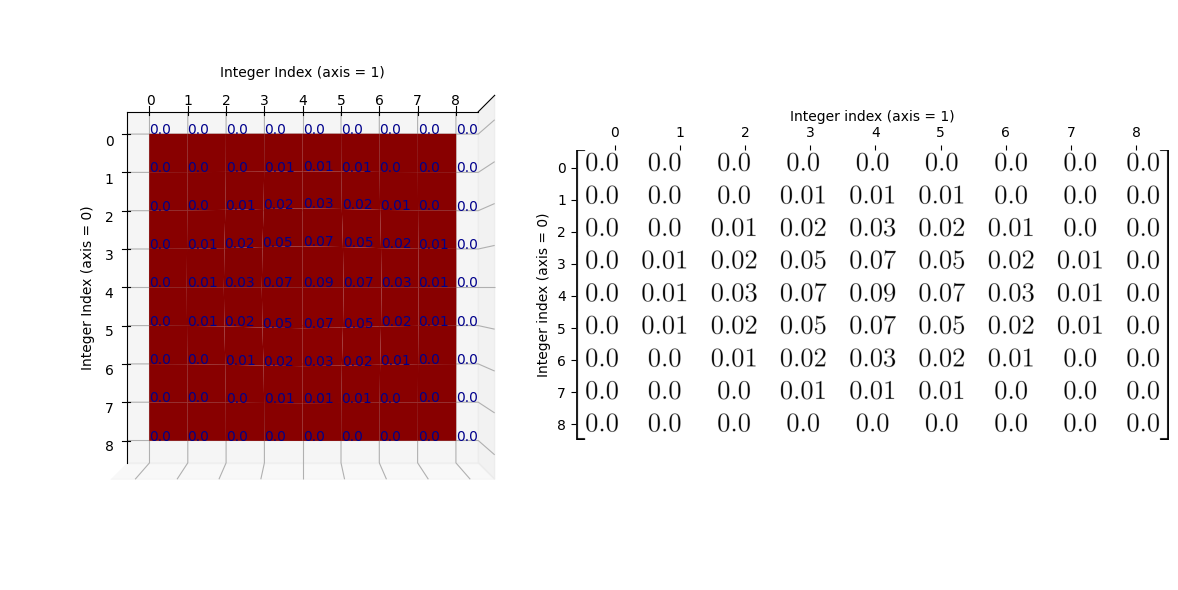

Again, to make the relationship between the NumPy array and the graph as clear as possible, here is the “red mountain” viewed from directly above, with the big_gaussian_kernel array shown to its right:

Hide code cell source

surface_mat_pair(big_gaussian_kernel, 'images/big_gaussian_kernel.png')
/home/runner/work/skimage-tutorials-temp/skimage-tutorials-temp/skitut/displutils.py:23: UserWarning: No LaTeX installation; cannot save. Loading existing file "images/big_gaussian_kernel.png"
  warn('No LaTeX installation; cannot save. '
_images/919a691d3714e454f25c66c23dd7bac27838219b4746ac549f8f7a13c00987f0.png

You may (or may not) recognise the “red mountain” - when we plot the big_gaussian_kernel - as a multivariate Gaussian distribution. Here is one way of writing the formula for a multivariate Gaussian distribution:

\( \Large p(x, y) = \frac{1}{2 \pi \sigma_x \sigma_y} \ e^{-\frac{1}{2} (\frac{(x - \mu_x)^2} {\sigma_x^2} + \frac{(y - \mu_y)^2} {\sigma_y^2})} \)

where \(\mu_x\) is the mean of all \(x\) values, and \(\sigma_x\) is the standard deviation of all \(x\) values.

In our case, when we are building kernels, the inputs \(x\) and \(y\) will be some function of row and column indices. Here is a plot of a prototypical multivariate Gaussian, where both input variables have a mean of 0, a standard deviation of 1.[2]

# Plot multivariate Gaussian; both x and y have a mean of 0 and std of 1.
x = np.linspace(-5, 5, 10_00)
y = np.linspace(-5, 5, 10_00)
X, Y = np.meshgrid(x,y)
mu_x = 0
mu_y = 0
sigma_x = 1
sigma_y = 1
Z = 1/(2 * np.pi * sigma_x * sigma_y) * np.exp(-0.5 * ((X - mu_x)**2 / sigma_x**2 + (Y - mu_y)**2 / sigma_y**2))

# Generate the plot.
fig = plt.figure(figsize=(8, 8))
ax = plt.axes(projection='3d')
ax.plot_surface(X, Y, Z)
ax.set_xlabel('X')
ax.set_ylabel('Y')
ax.set_zlabel('Probability', labelpad=1)
ax.set_title("Multivariate Gaussian Distribution");

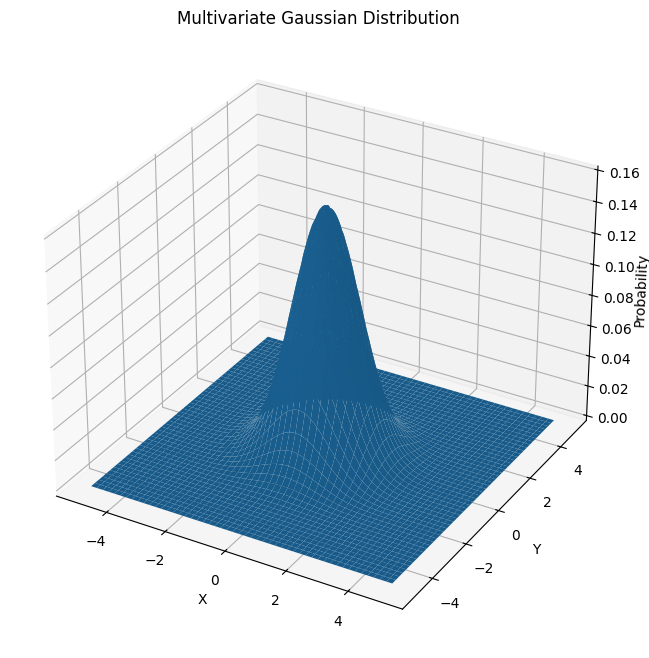

_images/f4d1a492b0bba3b270e6e2bbe24f2ec119c9eb48c89849bab52ff3e7917ab63e.png

Here is the plot of big_gaussian_kernel again, for comparison to the perfect Gaussian shown in the image above:

# Show the plot of `big_gaussian_kernel` again.
kernel_plot(big_gaussian_kernel, text = False)
_images/48e8632d7b54821fac5a73d15761b4132aeb9b8dedbbbff9d95839098a2483df.png

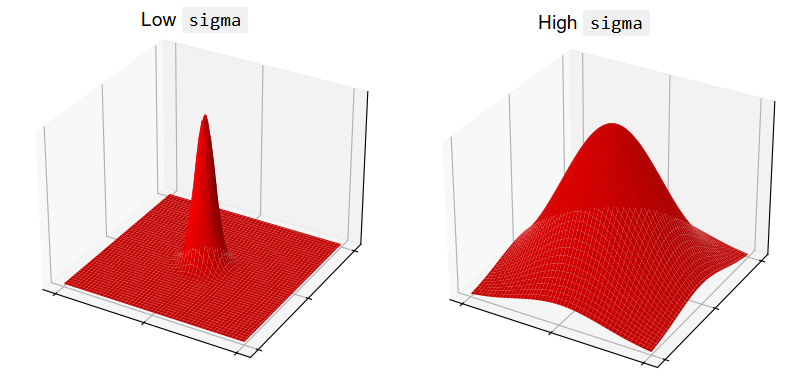

The “crimson peak” of the big_gaussian_kernel is spikier than for the prototypical Gaussian, simply because it is centered on a single pixel (creating the spike at the “crimson peak”). For the smaller gaussian_like_kernel the whole 3D plot appeared more “spiky” as it has less array elements. In the bigger (9, 9) big_gaussian_kernel, we can see a smoother, more obviously Gaussian “mountain”, much more visually similar to prototypical multivariate Gaussian distribution.

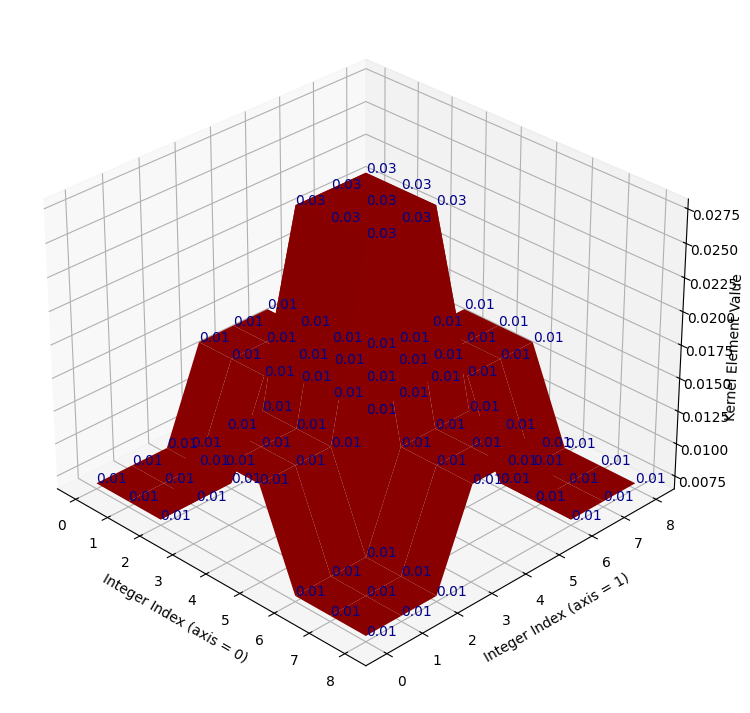

Both our (3, 3) kernel above, and the larger kernel we just plotted, are called gaussian blur kernels. Let’s look at the gaussian_like_kernel array again, to compare it to big_gaussian_kernel directly:

Hide code cell source

show_mat(gaussian_like_kernel)
\[\begin{split}\displaystyle \left[\begin{matrix}0.06 & 0.12 & 0.06\\0.12 & 0.25 & 0.12\\0.06 & 0.12 & 0.06\end{matrix}\right]\end{split}\]

When comparing to the big_gaussian_kernel, shown below, you can see that the pattern in the numbers is the same. The biggest value occurs in the center of the array, the smallest values are in the corners of the array. For the bigger Gaussian kernel, it is apparent that kernel values closer to the center are larger, the values get smaller the further we get from the central element:

show_mat(big_gaussian_kernel)
\[\begin{split}\displaystyle \left[\begin{matrix}0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0\\0.0 & 0.0 & 0.0 & 0.01 & 0.01 & 0.01 & 0.0 & 0.0 & 0.0\\0.0 & 0.0 & 0.01 & 0.02 & 0.03 & 0.02 & 0.01 & 0.0 & 0.0\\0.0 & 0.01 & 0.02 & 0.05 & 0.07 & 0.05 & 0.02 & 0.01 & 0.0\\0.0 & 0.01 & 0.03 & 0.07 & 0.09 & 0.07 & 0.03 & 0.01 & 0.0\\0.0 & 0.01 & 0.02 & 0.05 & 0.07 & 0.05 & 0.02 & 0.01 & 0.0\\0.0 & 0.0 & 0.01 & 0.02 & 0.03 & 0.02 & 0.01 & 0.0 & 0.0\\0.0 & 0.0 & 0.0 & 0.01 & 0.01 & 0.01 & 0.0 & 0.0 & 0.0\\0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0\end{matrix}\right]\end{split}\]

As we said above, when we filter using these Gaussian kernels, we “walk” the kernel through the image, with the top of the “mountain”, the crimson peak, centered on a given pixel at each step. The central pixel value is then replaced with a weighted average of the pixels in the neighborhood, where each pixel’s contribution (weight) to the average is given by the corresponding kernel value. With a Gaussian kernel like this, pixels nearer to the center of the kernel have higher weights — so the weight is related to its distance to the crimson peak of the Gaussian surfaces we showed above. Pixels closer to the central pixel, under the crimson peak, will exert more influence, pixels further away will exert a weaker influence.

Let’s apply the big_gaussian_kernel with the camera image, using ndi.correlate(), as we used for the mean filter:

# Appl the `big_gaussian_kernel` as a filter.
big_gaussian_filtered_small_square = ndi.correlate(small_square,
                                                   weights=big_gaussian_kernel)

# Plot comparison images.
plt.figure(figsize=(14, 4))
plt.subplot(1, 3, 1)
plt.title('Original')
plt.matshow(small_square, fignum=0)
plt.subplot(1, 3, 2)
plt.title('Gaussian filter \n(3, 3) kernel')
plt.matshow(gaussian_like_filtered_small_square, fignum=0);
plt.subplot(1, 3, 3)
plt.title('Gaussian filter \n(9, 9) kernel')
plt.matshow(big_gaussian_filtered_small_square, fignum=0);

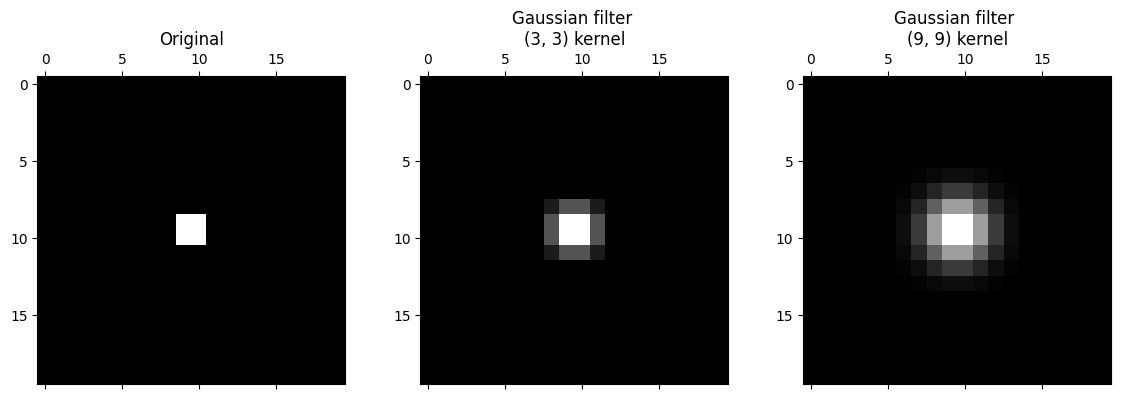

_images/321212d1fb924da66ca5c0da00ced5a42a424919b274576f467738a79096d9bd.png

It is apparent that the larger kernel has “spread” the intensity of higher-valued pixels further than the small kernel. This makes sense, because it is averaging across bigger pixel neighborhoods.

Both of these kernels are quite small relative to the size of the image. As such, it is easier to see their effect in lower-resolution images.

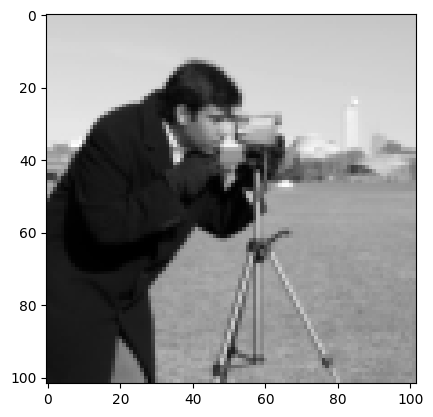

Below, we make a pixelated version of camera:

# Pixelate the `camera` image.
camera = ski.data.camera()
# Rescale to 20% of original size, this makes the image appear more pixelated.
pixelated_camera = ski.transform.rescale(camera, 0.2)
plt.imshow(pixelated_camera);
_images/93a8ab9da985da3feea381a44dfa83b6de2baa4b4d617e55cc6d53985d7e9fb3.png

Below, we filter with separately with gaussian_like_kernel and big_gaussian_kernel:

# Filter with the small Gaussian kernel.
gaussian_like_filtered_pixelated_camera = ndi.correlate(pixelated_camera,
                                               weights=gaussian_like_kernel)

# Filter with the big Gaussian kernel.
big_gaussian_filtered_pixelated_camera = ndi.correlate(pixelated_camera,
                                               weights=big_gaussian_kernel)

# Plot comparison images.
plt.figure(figsize=(14, 4))
plt.subplot(1, 3, 1)
plt.title('Original (Pixelated)')
plt.matshow(pixelated_camera, fignum=0)
plt.subplot(1, 3, 2)
plt.title('Gaussian filter \n(3, 3) Kernel')
plt.matshow(gaussian_like_filtered_pixelated_camera, fignum=0);
plt.subplot(1, 3, 3)
plt.title('Gaussian filter \n(9, 9) Kernel')
plt.matshow(big_gaussian_filtered_pixelated_camera, fignum=0);

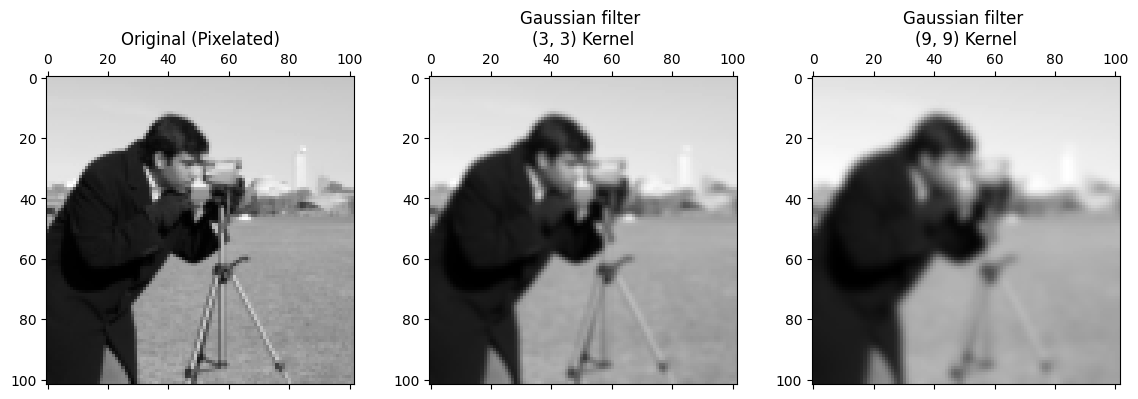

_images/93b1a281d7bfffde24fffb0bc3ba8473f17d6cd71f34be857137a96dffbfe8a4.png

The smoothing effect is clear, with the larger kernel creating a more striking smoothing effect, because we are blurring over more pixels.

Gaussian filters in skimage#

Gaussian filters are easy to implement in skimage; let’s try it with the cat image from ski.data:

# Load the `cat` image.
cat = ski.data.cat()
show_attributes(cat)
plt.imshow(cat);
Type: <class 'numpy.ndarray'>
dtype: uint8
Shape: (300, 451, 3)
Max Pixel Value: 231
Min Pixel Value: 0
_images/4ee7477b739aa9fda7066966d5336ad7e5db317659e8f8e26fc7d7318b27b680.png

ski.filters.gaussian() implements the Gaussian filter. We can control the sigma parameter, which controls the spread of the Gaussian “mountain” in the kernel. Lower values will reduce the weight of pixel values far from the central pixel, giving high weights only to those close to the peak. Conversely, higher values will give greater weight to pixels further away from the central pixel:

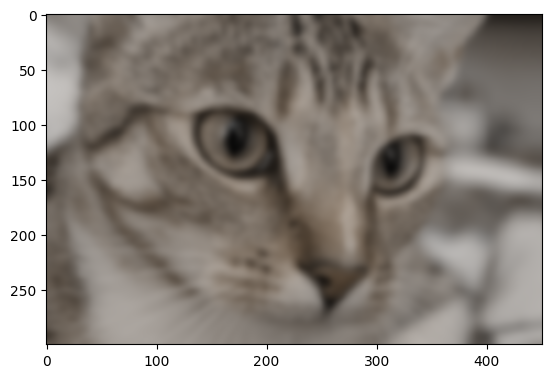

Let’s apply the filter with a sigma of 3:

# Gaussian filter `cat`, with `skimage`.
plt.imshow(ski.filters.gaussian(cat, sigma=3));
_images/ad50e1f4cd4313174436034fd3a9d7e3b1bee59e39193d8793af9a4005b2fd25.png

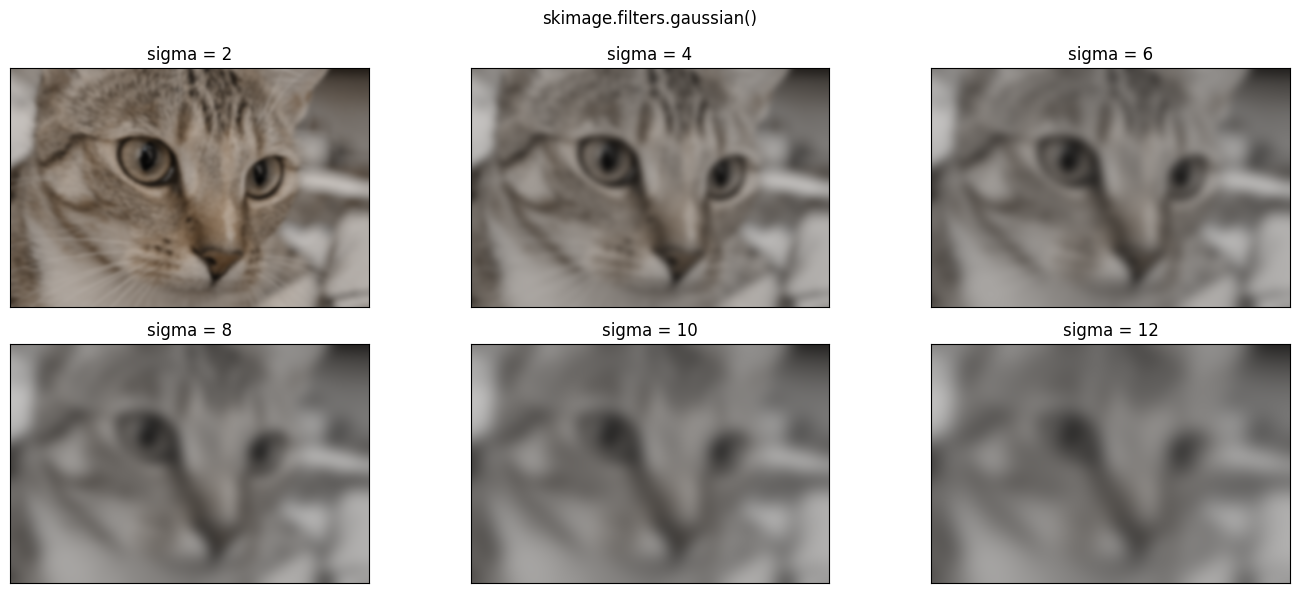

Higher sigma values will introduce a blurrier effect, because for higher sigma values, pixels further from the central value within each kernel are exerting more influence in the averaging calculation:

# Plot with different `sigma` values.
plt.figure(figsize=(14, 6))
for i, sigma in enumerate(np.arange(2, 14, 2)):
    plt.subplot(2, 3, i+1)
    plt.imshow(ski.filters.gaussian(cat, sigma=sigma))
    plt.xticks([])  # Turn of tick marks and labels.
    plt.yticks([])
    plt.title(f"sigma = {sigma}")
plt.suptitle('skimage.filters.gaussian()')
plt.tight_layout();
_images/fb62fc275b622da3f888e92ec8cd97f93dad43fd95685508b4430a64dded83ee.png

Image sharpening#

Gaussian filtering is a nice visual effect by itself, but filters like the Gaussian filter which blur an image can also, somewhat paradoxically, be used to sharpen an image. Sharpening is the opposite of blurring, it makes images clearer, with the features and edges more defined.

How can we sharpen an image with a Gaussian blur filter, we hear you ask? We will demonstrate below. Sharpening is easiest to appreciate if we start with a slightly blurry image. In the cell below, we create a blurry_cat image by applying a Gaussian filter, we use a low sigma value, to keep the blur only slight:

# Add a little blur.
blurry_cat = ski.filters.gaussian(ski.data.cat(),
                                  sigma=1)
plt.imshow(blurry_cat);
_images/588cd83d5ea17078ac1fb66fedd561e118cacc5cc8a305ca4bd4dddd8078b61f.png

A simple way to sharpen the image is via the following procedure:

\[ \text{sharpened_image} = \text{original_image} + (\text{original_image} – \text{blurred_image}) \]

Theoretically speaking, \(\text{(original_image – blurred_image)}\) contains sharpened details of the image, because it results from subtracting out a version of the image which is blurrier than the original, giving us the difference between the original image and the blurry image. This effect is easiest to appreciate visually:

# Perform the sharpening, on each color channel separately, to avoid altering the color of the image.
gaussian_filtered_cats = []
sharpened = []
for i in np.arange(blurry_cat.shape[2]):
    gaussian_filtered_cats.append(ski.filters.gaussian(blurry_cat[:, :, i], 4))
    sharpened.append(blurry_cat[:, :, i] + (blurry_cat[:, :, i] - gaussian_filtered_cats[i]))

# Stack back to 3D.
sharpened = np.stack(sharpened, axis=2)
gaussian_filter_cat = np.stack(gaussian_filtered_cats,
                               axis=2)

# Rescale to legal pixel ranges.
sharpened = ski.exposure.rescale_intensity(sharpened, out_range=(0, 1))

# Show the result.

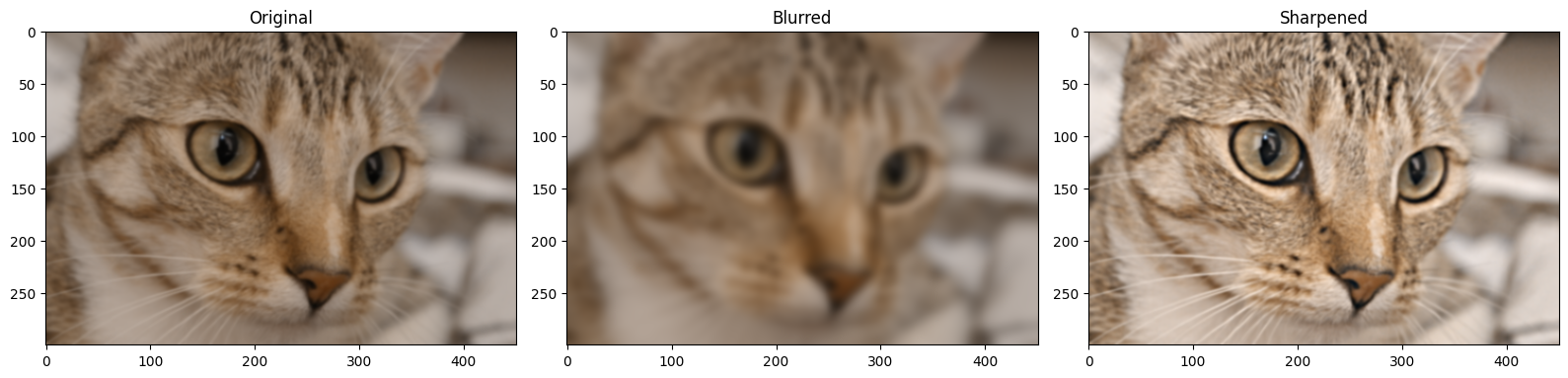

plt.figure(figsize=(16, 6))
plt.subplot(1,3,1)
plt.title('Original')
plt.imshow(blurry_cat)
plt.subplot(1,3,2)
plt.title('Blurred')
plt.imshow(gaussian_filter_cat)
plt.subplot(1,3,3)
plt.title('Sharpened')
plt.imshow(sharpened)
plt.tight_layout();
_images/f95dc7da557dea94d49f0a9110c664a6d287efd4cd07a12a4d4570385df009d5.png

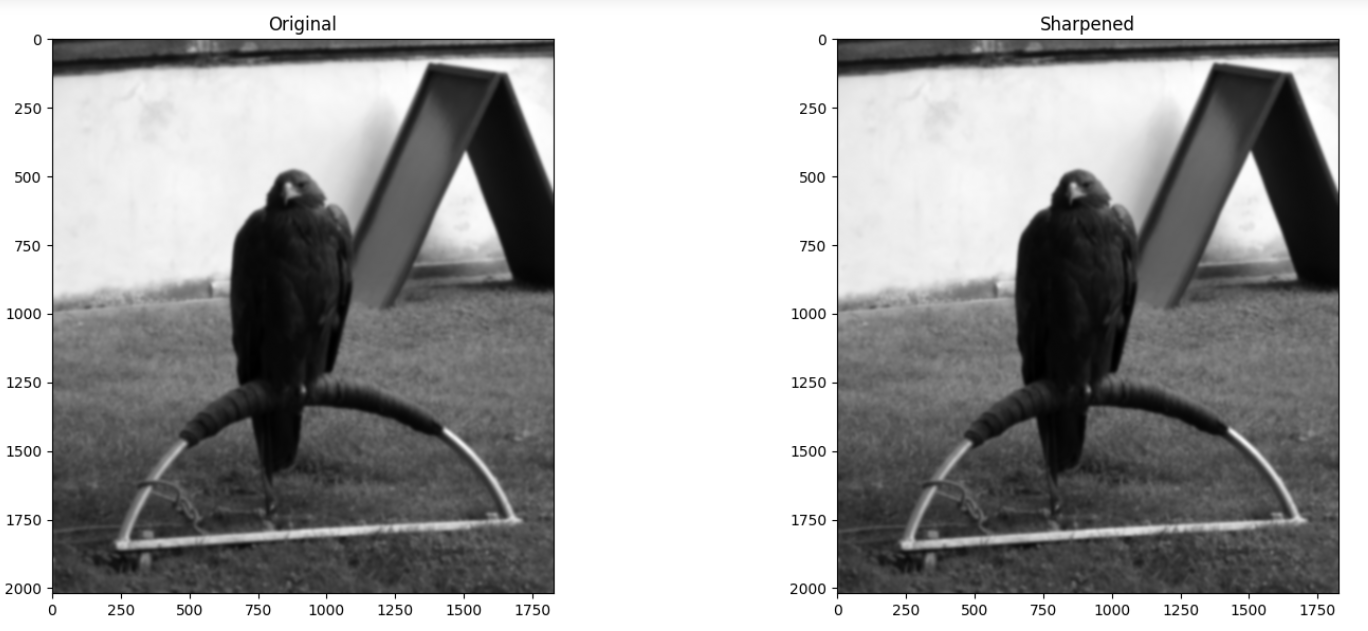

You can see that the sharpened image, as intended, has better clarity than the original. We can also use a specialised sharpening kernel to achieve the same effect:

sharpening_kernel = np.array([[0, -1 , 0],
                              [-1, 5, -1],
                              [0, -1,  0]])

Here’s a nicer mathematical display of the kernel:

Hide code cell source

show_mat(sharpening_kernel)
\[\begin{split}\displaystyle \left[\begin{matrix}0 & -1 & 0\\-1 & 5 & -1\\0 & -1 & 0\end{matrix}\right]\end{split}\]

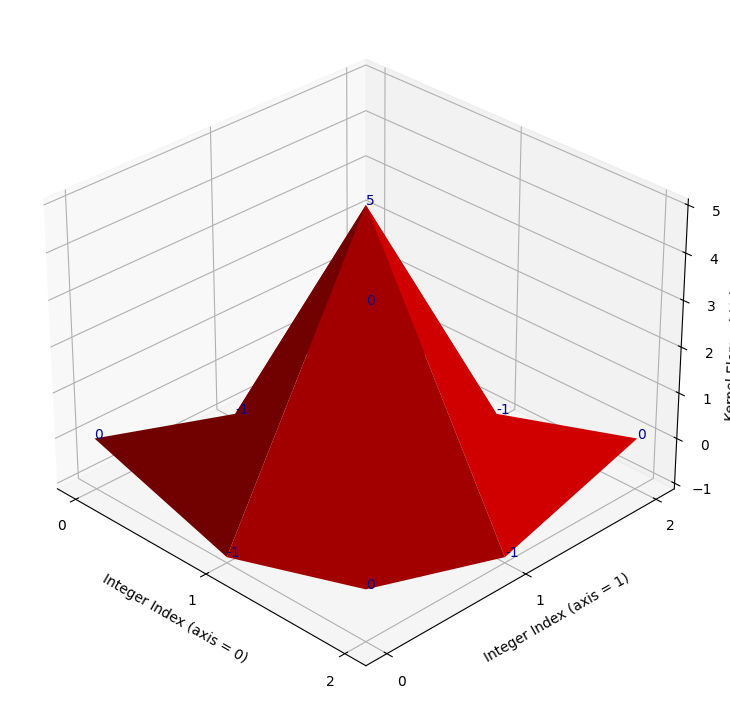

We show this kernel in 3D below (it does look pretty sharp!):

kernel_plot(sharpening_kernel)
_images/7eca6529fb91982116d77bb15505429b3c47ed674a6604544ba73b34974735d6.png

The kernel works by emphasising differences between adjacent pixels. Essentially, the more different a pixel is from its surrounding pixels, the bigger value it will get in the sharpened image.

To see this in detail, let’s take just the middle row of the sharpening_kernel:

# Slice out the middle row of the `sharpening_kernel`.
middle_row_sharp = sharpening_kernel[1, :]

middle_row_sharp
array([-1,  5, -1])

We can filter this middle row with a 1-D array of numbers, using the same machinery as for larger image arrays:

# An array of numbers.
my_nums = np.array([0, 1, 2, 100])
my_nums
array([  0,   1,   2, 100])

We perform the filtering in the cell below:

ndi.correlate(my_nums, weights=middle_row_sharp)
array([ -1,   3, -91, 398])

You can see that bigger differences between adjacent values result in larger absolute numbers in the output array, emphasising the differences. We show this principle again below, using 2D arrays the full sharpening_kernel. First, we create a 2D array where there are no differences between the adjacent pixels:

# A boring array.
no_diff = np.ones((6, 6))
no_diff
array([[1., 1., 1., 1., 1., 1.],
       [1., 1., 1., 1., 1., 1.],
       [1., 1., 1., 1., 1., 1.],
       [1., 1., 1., 1., 1., 1.],
       [1., 1., 1., 1., 1., 1.],
       [1., 1., 1., 1., 1., 1.]])

Applying this array with the sharpening_kernel will yield the same array, as there are no differences in the input.

ndi.correlate(no_diff, weights=sharpening_kernel)
array([[1., 1., 1., 1., 1., 1.],
       [1., 1., 1., 1., 1., 1.],
       [1., 1., 1., 1., 1., 1.],
       [1., 1., 1., 1., 1., 1.],
       [1., 1., 1., 1., 1., 1.],
       [1., 1., 1., 1., 1., 1.]])

Conversely, the array below contains a repeating pattern of 2’s and 3’s in the first three rows, so the differences between pixel neighborhoods in the early rows are fairly consistent.

In the last three rows, the same pattern is repeated, only now the 3’s are negative, increasing the difference between the pixels in each neighborhood:

diffs = np.array([[2, 3, 2, 3, 2, 3],
                  [3, 2, 3, 2, 3, 2],
                  [2, 3, 2, 3, 2, 3],
                  [2, -3, 2, -3, 2, -3],
                  [-3, 2, -3, 2, -3, 2],
                  [2, -3, 2, -3, 2, -3]])
diffs
array([[ 2,  3,  2,  3,  2,  3],
       [ 3,  2,  3,  2,  3,  2],
       [ 2,  3,  2,  3,  2,  3],
       [ 2, -3,  2, -3,  2, -3],
       [-3,  2, -3,  2, -3,  2],
       [ 2, -3,  2, -3,  2, -3]])

Applying the sharpening_kernel results in a larger number of larger absolute values in the bottom three rows, amplifying the differences between the pixels, such that larger differences become even larger thanks to the sharpening operation:

# Larger differences in later rows, where there is greater variance in the pixel intensities.
sharp_diffs = ndi.correlate(diffs, weights=sharpening_kernel)
sharp_diffs
array([[  0,   6,  -1,   6,  -1,   5],
       [  6,  -2,   7,  -2,   7,  -1],
       [  0,  12,  -1,  12,  -1,  11],
       [ 12, -24,  17, -24,  17, -19],
       [-18,  22, -23,  22, -23,  17],
       [ 12, -18,  17, -18,  17, -13]])

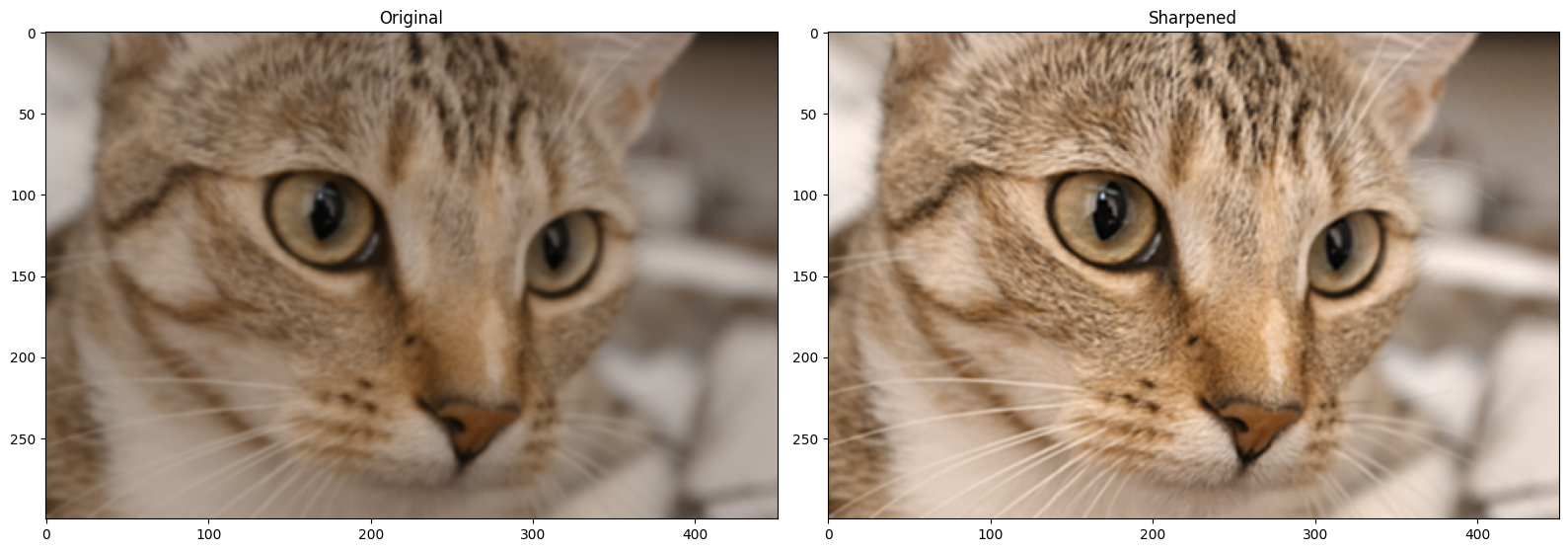

Let’s apply the sharpening_kernel to the blurry_cat image array. As this array is a 2D color image (meaning, a 3D array), we apply the kernel to each color channel separately:

# Separately sharpen each color channel of the `blurry_cat` image.
sharpened_cat = blurry_cat.copy()
for i in np.arange(3):
    sharpened_cat[:, :, i] = ndi.correlate(blurry_cat[:, :, i],
                                          weights=sharpening_kernel)

# Rescale to avoid non-standard pixel range.
sharpened_cat = ski.exposure.rescale_intensity(sharpened_cat, out_range=(0, 1))

# Show the result.
plt.figure(figsize=(16, 6))
plt.subplot(1,2,1)
plt.title('Original')
plt.imshow(blurry_cat)
plt.subplot(1,2,2)
plt.title('Sharpened')
plt.imshow(sharpened_cat)
plt.tight_layout();
_images/ab8d3ee35afd3ff58ea9078b2623077e2d74790468400d376cdd3e038594dee3.png

Scikit-image (unsurprisingly) also has filters to sharpen images. The ski.filters.unsharp_mask() filter is one such filter, and it uses a similar approach to the one we used above, when we sharpened an image using a Gaussian filter. ski.filters.unsharp_mask() uses the following approach:

\( \text{sharpened_img = original_img + scaling_amount * (original_img - blurred_img)} \)

…where “scaling_amount” is a single value which amplifies the sharpened details. Here is the result on blurry_cat, using the default parameters, aside from channel_axis. We set this to 2 to tell the function that this is a color image, with the color channels in the third dimension (axis=2). This prevents the sharpening filter from applying the sharpening filter across the color axis, and therefore affecting the color of the image.

# Sharpen `blurry_cat`.
sharpen_cat = ski.filters.unsharp_mask(blurry_cat,
                                       channel_axis=2)

# Show the result.
plt.figure(figsize=(16, 6))
plt.subplot(1,2,1)
plt.title('Original')
plt.imshow(blurry_cat)
plt.subplot(1,2,2)
plt.title('Sharpened \n(with `ski.filters.unsharp_mask()`)')
plt.imshow(sharpen_cat)
plt.tight_layout();
_images/db6313b878f71bef6cee4880b5701135808b83fac56a1af11b7e5f2da8356331.png

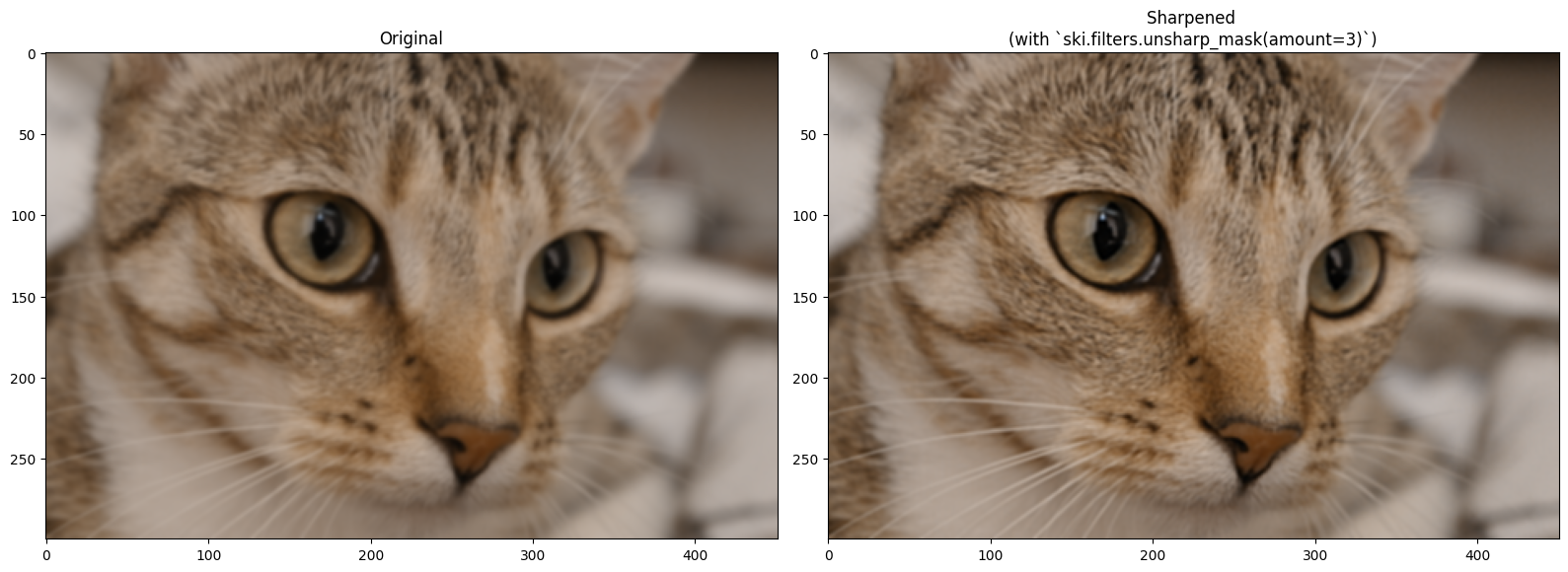

Changing the amount parameter will intensify the sharpening effect:

# Sharpen `blurry_cat`.
sharpen_cat = ski.filters.unsharp_mask(blurry_cat,
                                       amount=2,
                                       channel_axis=2)

# Show the result.
plt.figure(figsize=(16, 6))
plt.subplot(1,2,1)
plt.title('Original')
plt.imshow(blurry_cat)
plt.subplot(1,2,2)
plt.title('Sharpened \n(with `ski.filters.unsharp_mask(amount=3)`)')
plt.imshow(sharpen_cat)
plt.tight_layout();
_images/5d79ba9e6edb3adbd4fd175f733be8c883218dc3064995bfb66be16be480da82.png

Edge detection filtering#

We saw a simple edge detection filter in one of the exercises on an earlier page. In image processing and computer vision, an edge is a rapid change in intensity between pixels - in other words there is a high gradient of change between the pixel values. We can construct a kernel which will detect such intensity changes in the vertical (\(y\)) direction, and thus will detect horizontal edges. That may sound paradoxical, but horizontal edges have vertical gradients:

# A horizontal edge detection kernel.
horizontal_edge_detection_kernel = np.array([[-1, -1, -1],
                                             [ 0,  0,  0],
                                             [ 1,  1,  1]])

horizontal_edge_detection_kernel
array([[-1, -1, -1],
       [ 0,  0,  0],
       [ 1,  1,  1]])

To show how this kernel works, we will make an image array with very clear edges - one horizontal edge is at the top of the white square, another is at the bottom of the white square. One vertical edge is on the left side of the square, and another vertical edge is on the right side of the square:

# An image array containing clear edges.
edgy = np.array([ [0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
                  [0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
                  [0, 0, 1, 1, 1, 1, 1, 1, 0, 0],
                  [0, 0, 1, 1, 1, 1, 1, 1, 0, 0],
                  [0, 0, 1, 1, 1, 1, 1, 1, 0, 0],
                  [0, 0, 1, 1, 1, 1, 1, 1, 0, 0],
                  [0, 0, 1, 1, 1, 1, 1, 1, 0, 0],
                  [0, 0, 1, 1, 1, 1, 1, 1, 0, 0],
                  [0, 0, 1, 1, 1, 1, 1, 1, 0, 0],
                  [0, 0, 0, 0, 0, 0, 0, 0, 0, 0],
                  [0, 0, 0, 0, 0, 0, 0, 0, 0, 0]])

plt.imshow(edgy);

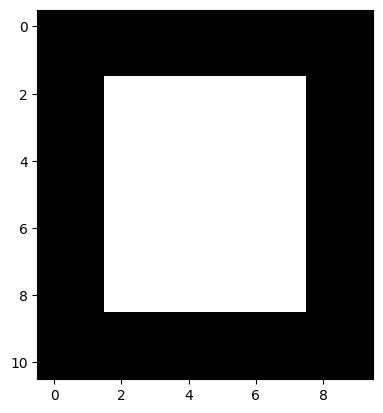

_images/1d845dc8a9f5531fce5c9bd9d5af31d3e70d70cf76481dc7910a64ce00195b14.png

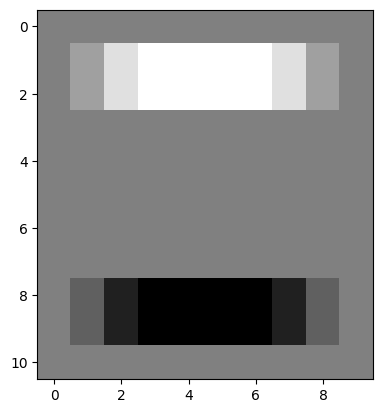

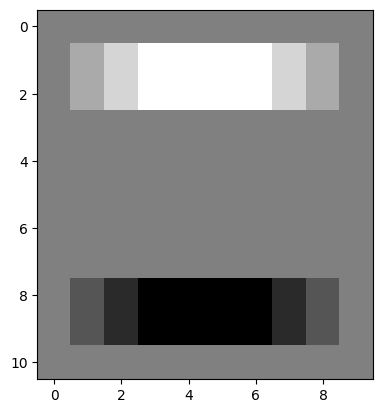

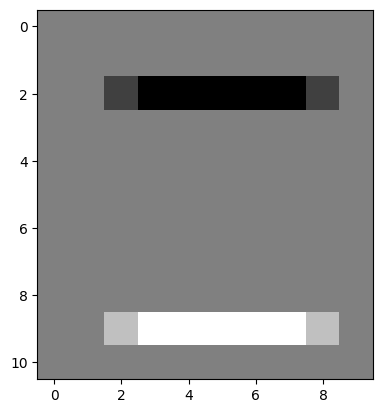

Applying our horizontal edge detection kernel finds the horizontal edges. Note again that the change in pixel intensities is in the vertical direction, but the edge itself runs in the horizontal direction:

# Use the horizontal edge detection filter.
edgy_horizontal = ndi.correlate(edgy,
                                horizontal_edge_detection_kernel)
plt.imshow(edgy_horizontal);
_images/d63c3d4a7ef87062abca7a2c0d30d8cb20c07e650cfa7532dfc9bce8c6429ea2.png

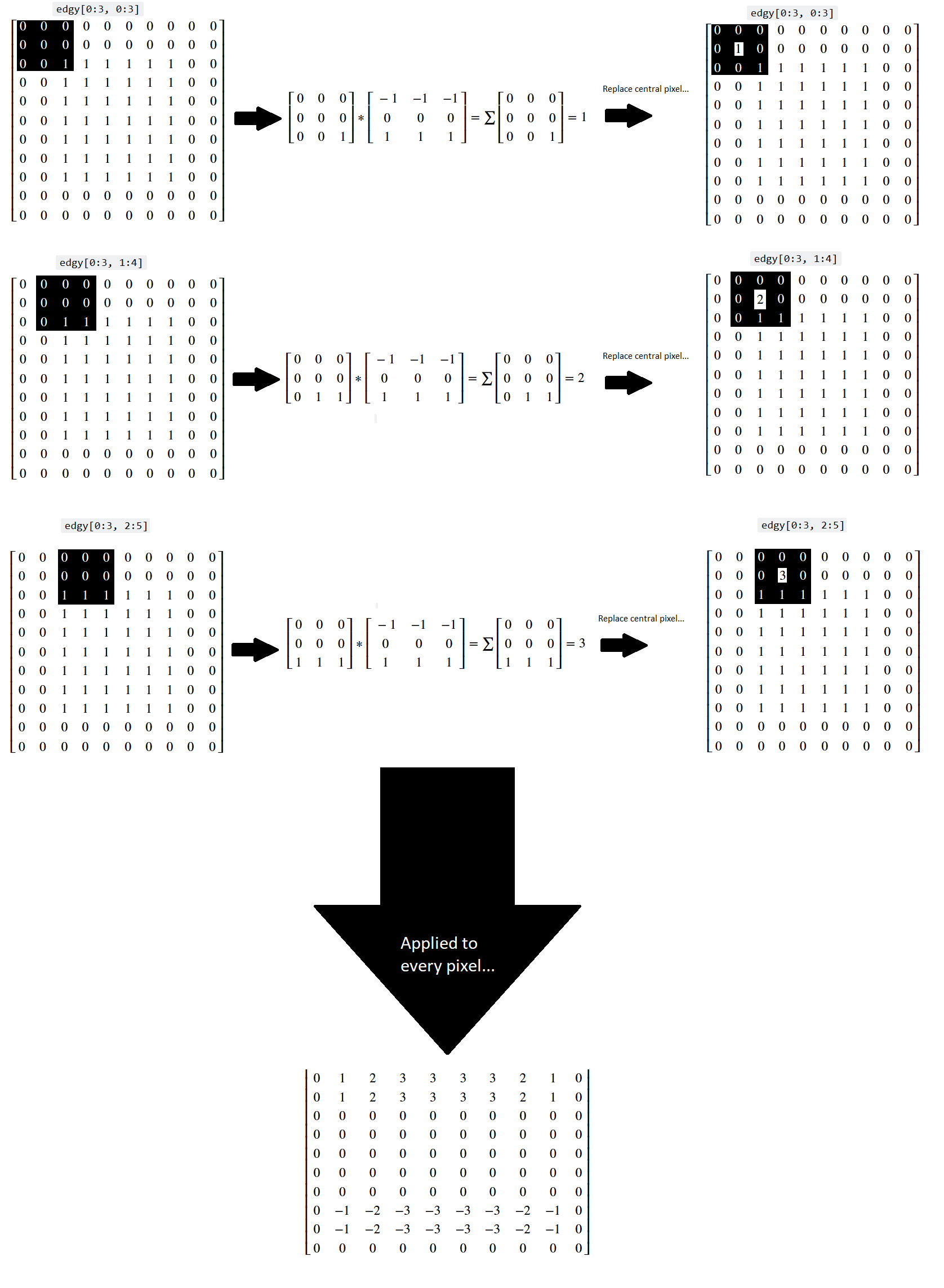

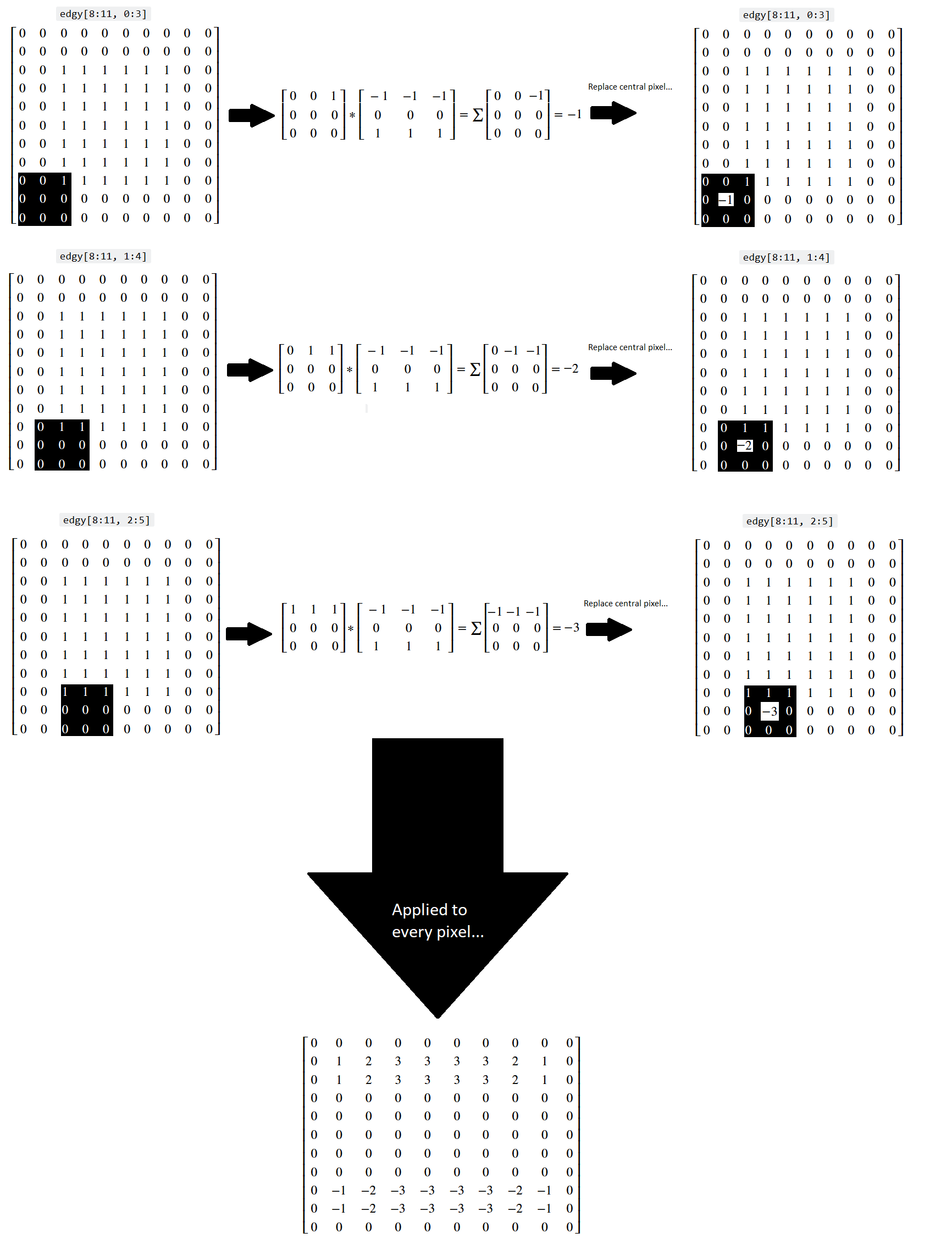

Let’s think about what has happened here at the level of the individual pixels. Three kernel locations from the top of the array are represented below (once again, you can right click on these images and open them in a new tab/window, for easier viewing):

You can see that, for a binary image, the horizontal kernel essentially “counts” the number of 0-to-1 vertical changes in the kernel location, which lets it detect horizontal edges.

Conversely, when the kernel hits the 1-to-0 vertical changes at the bottom of the array, we get a similar count of the 1-to-0 changes, but indicated by a negative value, telling us that the gradient is in the other direction:

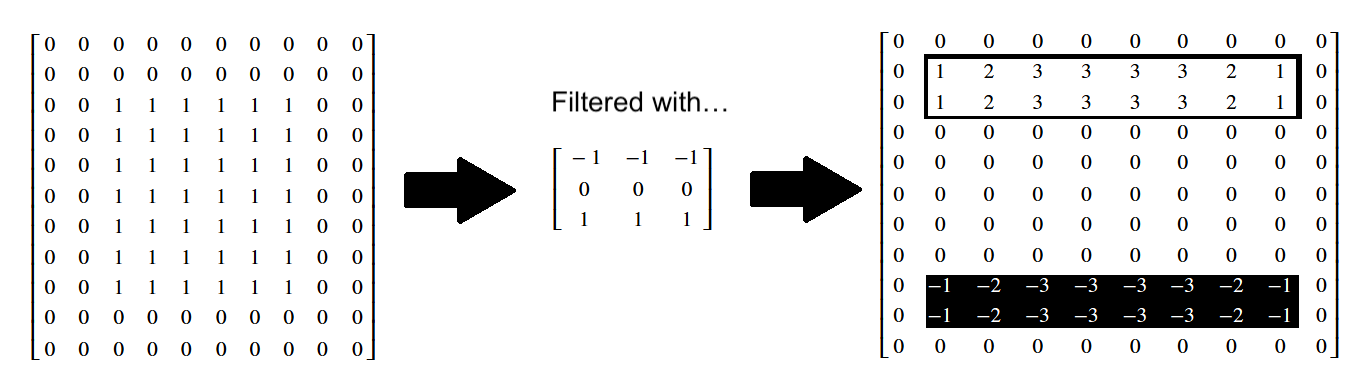

The original edgy array, and the array resulting from application of the horizontal_edge_detection_kernel are both shown in “raw” NumPy output below:

# Show the horizontal edge-filtered array.
print("Original `edgy` array:\n", edgy)
print("\nHorizontally edge filtered:\n", edgy_horizontal)
Original `edgy` array:
 [[0 0 0 0 0 0 0 0 0 0]
 [0 0 0 0 0 0 0 0 0 0]
 [0 0 1 1 1 1 1 1 0 0]
 [0 0 1 1 1 1 1 1 0 0]
 [0 0 1 1 1 1 1 1 0 0]
 [0 0 1 1 1 1 1 1 0 0]
 [0 0 1 1 1 1 1 1 0 0]
 [0 0 1 1 1 1 1 1 0 0]
 [0 0 1 1 1 1 1 1 0 0]
 [0 0 0 0 0 0 0 0 0 0]
 [0 0 0 0 0 0 0 0 0 0]]

Horizontally edge filtered:
 [[ 0  0  0  0  0  0  0  0  0  0]
 [ 0  1  2  3  3  3  3  2  1  0]
 [ 0  1  2  3  3  3  3  2  1  0]
 [ 0  0  0  0  0  0  0  0  0  0]
 [ 0  0  0  0  0  0  0  0  0  0]
 [ 0  0  0  0  0  0  0  0  0  0]
 [ 0  0  0  0  0  0  0  0  0  0]
 [ 0  0  0  0  0  0  0  0  0  0]
 [ 0 -1 -2 -3 -3 -3 -3 -2 -1  0]
 [ 0 -1 -2 -3 -3 -3 -3 -2 -1  0]
 [ 0  0  0  0  0  0  0  0  0  0]]

You can also view these arrays, in prettier form, below:

We can “flip” our edge detection kernel to look for big changes in gradient in the horizontal (\(x\)) direction, which will find vertical edges:

# A vertical edge detection kernel.
vertical_edge_detection_kernel = horizontal_edge_detection_kernel.T
vertical_edge_detection_kernel
array([[-1,  0,  1],
       [-1,  0,  1],
       [-1,  0,  1]])

It should be easy to appreciate why this edge detection kernel operates to detect gradients and edges in a different direction! Now, when applied to our edgy image array, the vertical edge detection kernel, true to its name, detects vertical edges, and it does so by looking for large pixel intensity changes in the horizontal direction (those at the left/right side edges of the square):

# The original square.
plt.imshow(edgy);
_images/1d845dc8a9f5531fce5c9bd9d5af31d3e70d70cf76481dc7910a64ce00195b14.png
# Detect edges in the vertical direction.
edgy_vertical = ndi.correlate(edgy,
                              vertical_edge_detection_kernel)

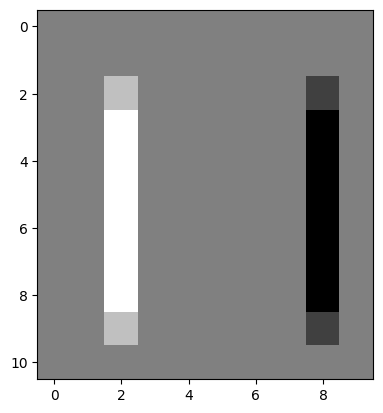

plt.imshow(edgy_vertical);
_images/ef7ef96d3d1a844a41acfecd610285b6e8a4092a027d7ad31bc067f3cbca3fb6.png

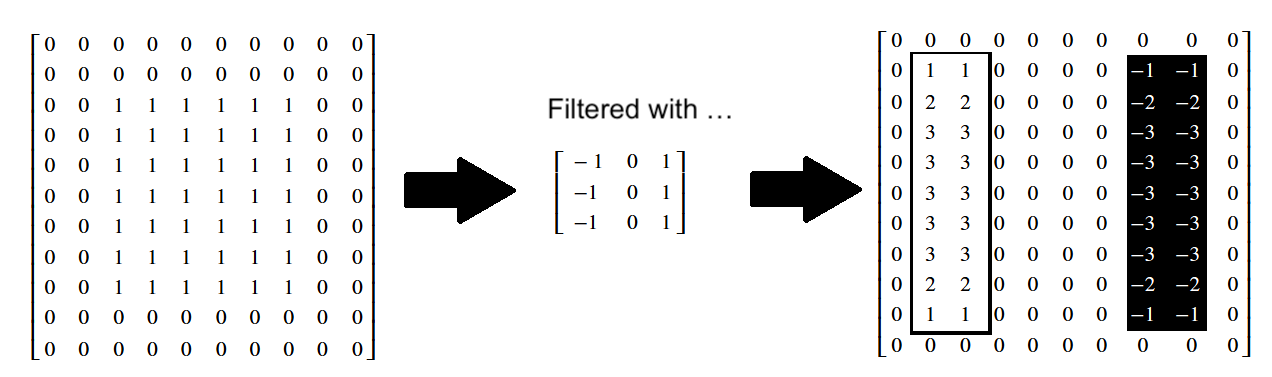

Again, in the resultant image, changes from black to white (0-to-1) end up as white pixels (with value 1). Conversely, changes from white to black (1-to-0) end up as black pixels (with value -1). No change ends up as gray (0):

Applied to more complex images, this edge detection can have some pretty cool effects:

# Load in an image, convert to grayscale.
coffee_gray = ski.color.rgb2gray(ski.data.coffee())

# Plot the original image.
plt.imshow(coffee_gray)
show_attributes(coffee_gray);
Type: <class 'numpy.ndarray'>
dtype: float64
Shape: (400, 600)
Max Pixel Value: 1.0
Min Pixel Value: 0.0
_images/d82d52811692c04712ff3dd4c3535ca3c131a987f9aaed636b100e92840c3bfd.png

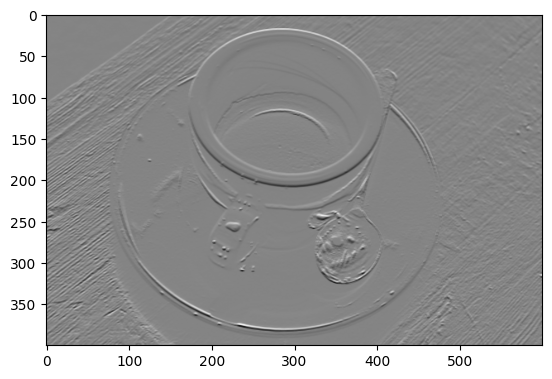

First, we detect edges in the horizontal direction:

# Filter using the horizontal edge detection kernel.
gradient_horizontal_coffee_gray = ndi.correlate(
    coffee_gray,
    horizontal_edge_detection_kernel)
plt.imshow(gradient_horizontal_coffee_gray);
_images/7d58d6ec2478f03dcc44030b051f2eb36049d312dc328b7518329c252dfb0c89.png

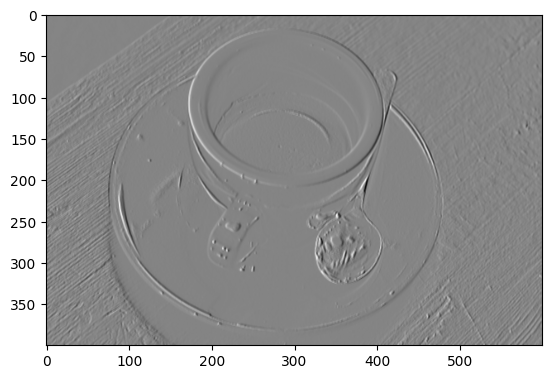

Then, in the vertical direction:

# Filter using the vertical edge detection kernel.
gradient_vertical_coffee_gray = ndi.correlate(
    coffee_gray,
    vertical_edge_detection_kernel)
plt.imshow(gradient_vertical_coffee_gray);
_images/2a3220ce4f4f91e52f384e372e2b42793eece82e21cade6c7d62bb4aea0f194e.png

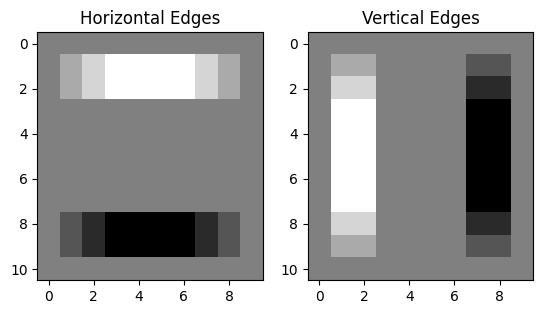

We can combine these two edge detection filters together to search for edges in both directions. First, lets refresh our memory of what edgy looked like, filtered in both directions separately:

# Show the image which has been filtered with the horizontal edge detection kernel.
plt.subplot(1, 2, 1)
plt.imshow(edgy_horizontal)
plt.title('Horizontal Edges')
# Show the image which has been filtered with the vertical edge detection kernel.
plt.subplot(1, 2, 2)
plt.imshow(edgy_vertical)
plt.title('Vertical Edges');
_images/0c4d3e9dcbbdb167c627a3df65868ad370637c1ba010bf545312b07ad19271dd.png

A simple way to combine these filters is to:

  • np.stack() them into 3D…

  • …then convert pixel values to absolute numbers (e.g. remove the signs)…

  • …and then take to the maximum value across the third dimension (e.g. using np.max(arr, axis = 2)). This will resize the array down to 2D and…

…at the end of this process, only pixels for which an edge was detected in either direction will remain in the resulting image array:

# Combine the filters.
# Stack to 3D, `shape` = (11, 10, 2).
edgy_vertical_horizontal_stack = np.stack([edgy_vertical,
                                           edgy_horizontal],
                                          axis=2)
# Remove the signs, from all elements in the 3D array.
edgy_vertical_horizontal_stack = np.abs(edgy_vertical_horizontal_stack)
# Reshape to 2D, leaving only the largest value from either slice in the
# resulting array.
edgy_vertical_horizontal_stack = np.max(edgy_vertical_horizontal_stack, axis=2)
# Show the result.
plt.imshow(edgy_vertical_horizontal_stack);

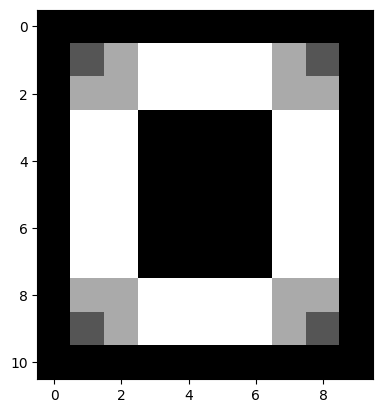

_images/eb2f8ffd386e4083d500599d1f0801dba61439a11f72fabc0eb3d9c9c2c69c9d.png

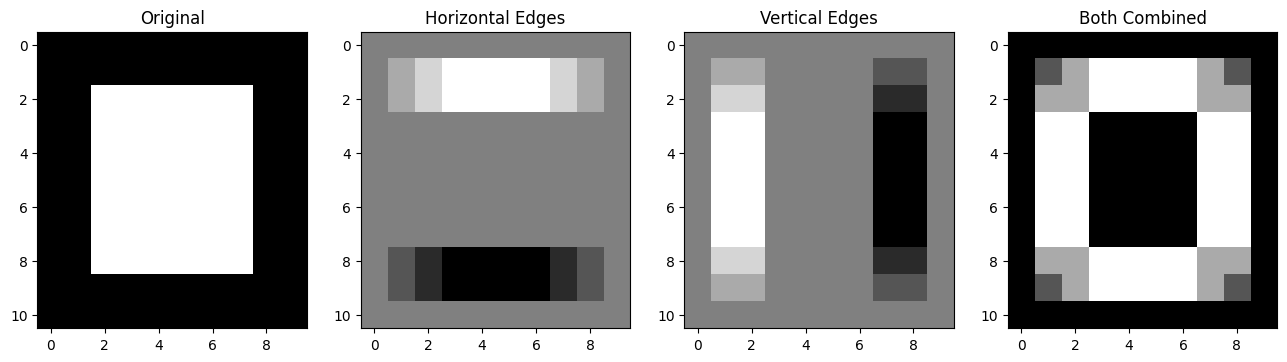

Pretty cool, here are all the steps, visualised together:

# Plot all the `edgy` images together.
plt.figure(figsize=(16, 6))
plt.subplot(1, 4, 1)
plt.title("Original")
plt.imshow(edgy)
plt.subplot(1, 4, 2)
plt.title("Horizontal Edges")
plt.imshow(edgy_horizontal)
plt.subplot(1, 4, 3)
plt.title("Vertical Edges")
plt.imshow(edgy_vertical)
plt.subplot(1, 4, 4)
plt.title("Both Combined")
plt.imshow(edgy_vertical_horizontal_stack);
_images/30fdc8bcc5fd81b1a9e01ff753f8691ea128feb31be04a20cf882e1618f30a62.png

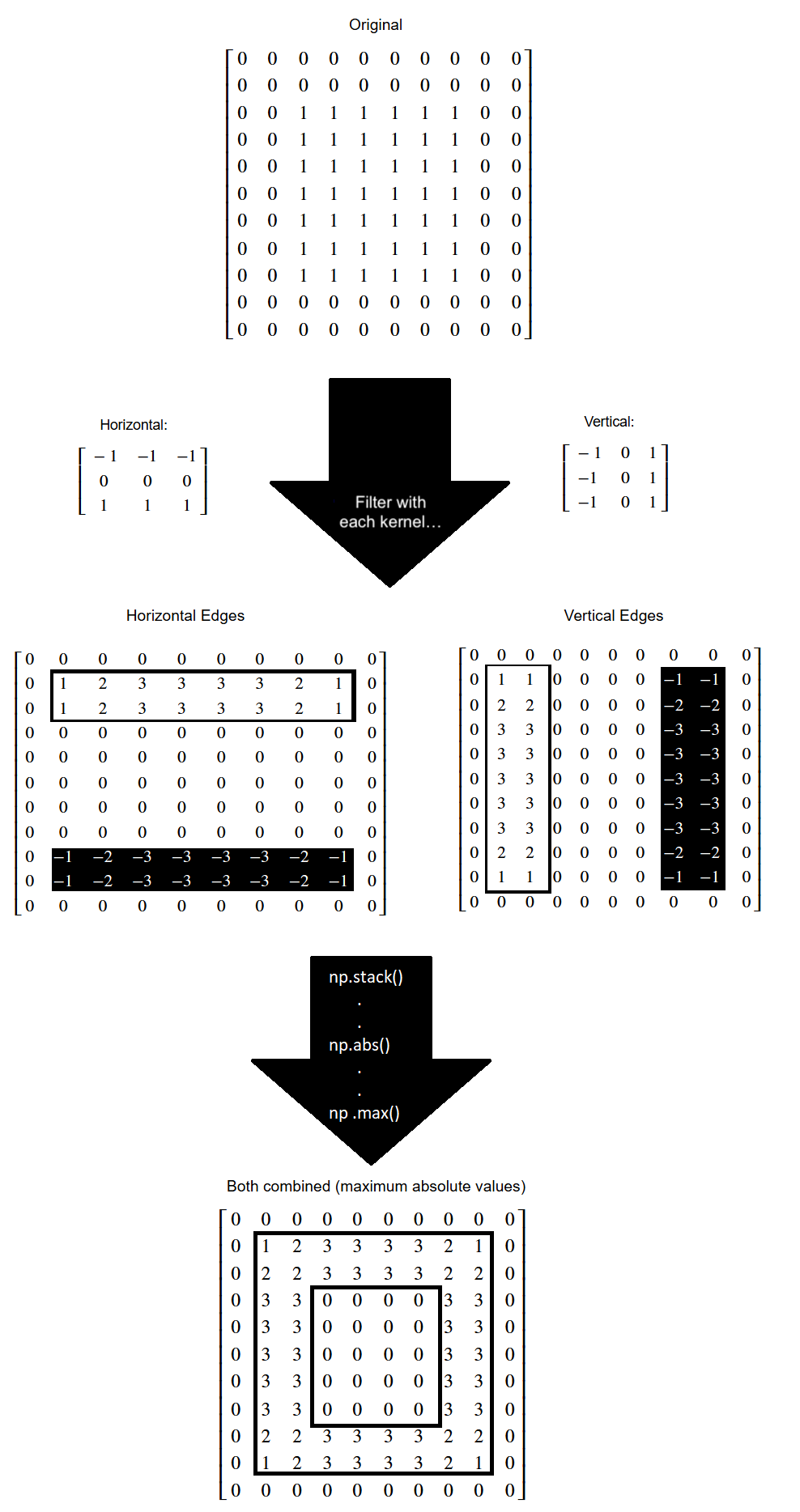

The pixel values throughout this edge detection process, on the edgy array, are shown on the image below:

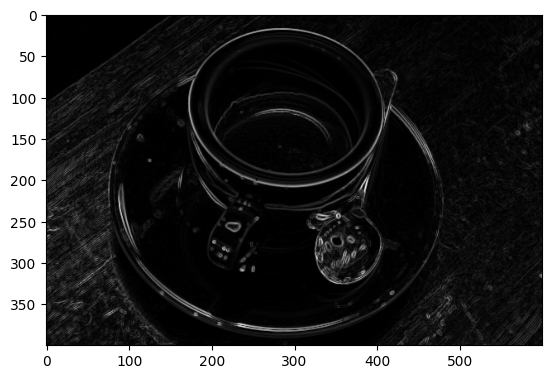

Let’s do this again, for the images that resulted from filtering coffee_gray with our horizontal and vertical edge detection kernels, respectively.

# Search for both types of edge (with `coffee_gray`).
# Stack to 3D, `shape` = (400, 600, 2).
coffee_vertical_horizontal_stack = np.stack([gradient_vertical_coffee_gray,
                                             gradient_horizontal_coffee_gray], axis=2)
# Remove the signs, from all elements in the 3D array.
coffee_vertical_horizontal_stack = np.abs(coffee_vertical_horizontal_stack)
# Reshape to 2D, leaving only the largest value from # from either slice in
# the resulting 2D array.
coffee_vertical_horizontal_stack = np.max(coffee_vertical_horizontal_stack,
                                          axis=2)

# Show the result.
plt.imshow(coffee_vertical_horizontal_stack);
_images/7c708d49bbe0c9ffbdba2d6eb2b6360d1ccebebe08948aeb1ff4c5e457946b0d.png

Edgy indeed…

We can view all of these steps together, on the plot below:

# Plot all the `coffee_gray` images together.
plt.figure(figsize=(12,8))
plt.subplot(2, 2, 1)
plt.title("Original")
plt.imshow(coffee_gray)
plt.subplot(2, 2, 2)
plt.title("Horizontal Edges")
plt.imshow(gradient_horizontal_coffee_gray)
plt.subplot(2, 2, 3)
plt.title("Vertical Edges")
plt.imshow(gradient_vertical_coffee_gray)
plt.subplot(2, 2, 4)
plt.title("Both Combined")
plt.imshow(coffee_vertical_horizontal_stack);

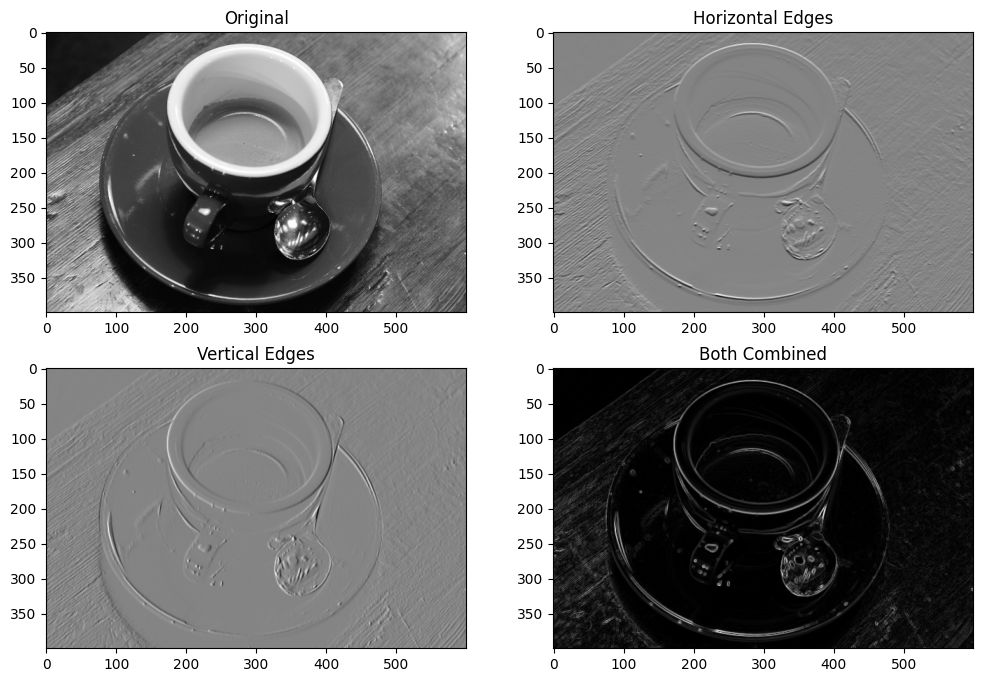

_images/931945ee376d97e32802d5e460a3ccc634cf91e73f9e55172051d38802c181f0.png

Sobel edge detection filtering#

The Sobel filter is a similar edge detection filter, which uses the following kernels:

# Sobel horizontal edge detection kernel.
sobel_horizontal =np.array([[-1,-2,-1],
                            [0, 0, 0],
                            [1, 2, 1]])
print("\nSobel horizontal edge detection kernel:\n", sobel_horizontal)
Sobel horizontal edge detection kernel:
 [[-1 -2 -1]
 [ 0  0  0]
 [ 1  2  1]]
# Sobel vertical edge detection kernel.
sobel_vertical = np.array([[-1, 0, 1],
                           [-2, 0, 2],
                           [-1, 0, 1]])
print("\nSobel vertical edge detection kernel:\n", sobel_vertical)
Sobel vertical edge detection kernel:
 [[-1  0  1]
 [-2  0  2]
 [-1  0  1]]

Let’s try these out with edgy:

# Apply the Sobel horizontal edge detection filter.
sobel_edgy_horizontal = ndi.correlate(edgy,
                                      sobel_horizontal)
plt.imshow(sobel_edgy_horizontal);
_images/17b469bd8fde746a3805ee80491d8f1a775b21d6fa4f161a312f3e2b3cb525f9.png

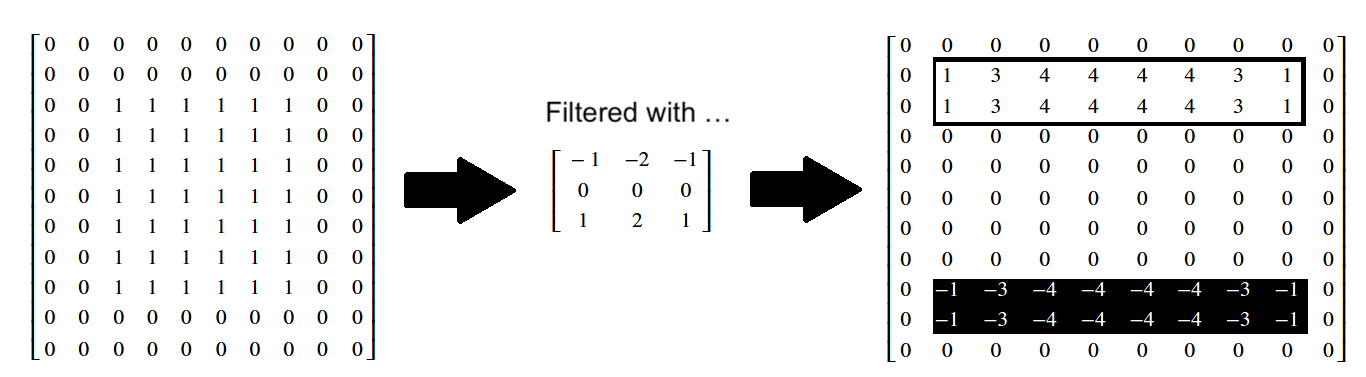

The effect on the individual pixel values is shown below:

# Apply the Sobel vertical edge detection filter.
sobel_edgy_vertical = ndi.correlate(edgy,
                                    sobel_vertical)
plt.imshow(sobel_edgy_vertical);

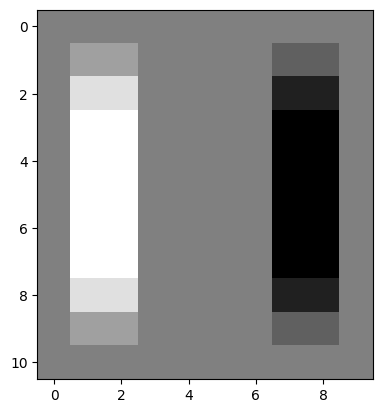

_images/0445e196df363678e0060a1a2d0ee6e4bed5feb91ae5542d1280bade9d5bdd24.png

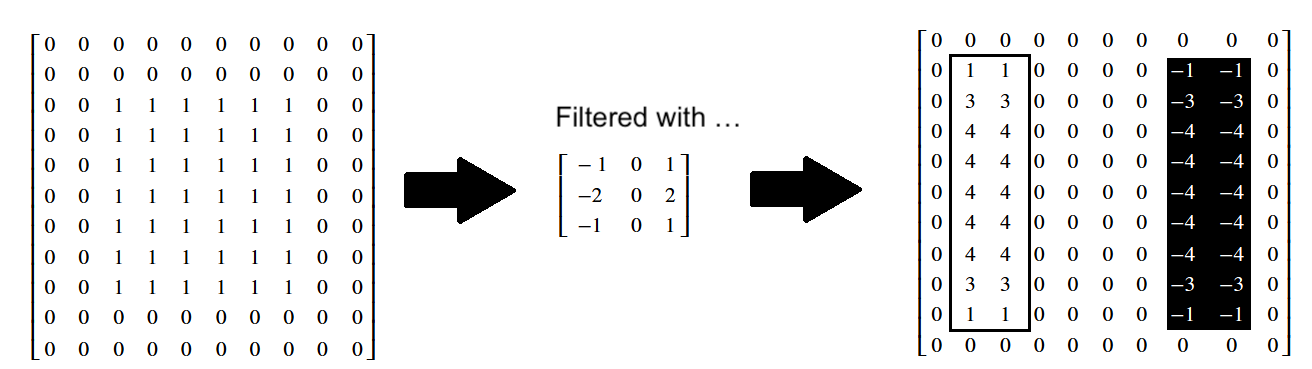

Again, you can inspect the effect on the individual pixel values below:

We can combine each edge-filtered image using the method we saw above, taking the absolute maximum values after stacking:

# Combine the filters.
# Stack to 3D, `shape` = (11, 10, 2).
sobel_edgy_vertical_horizontal_stack = np.stack([sobel_edgy_vertical,
                                                 sobel_edgy_horizontal],
                                                axis=2)
# Remove the signs, from all elements in the 3D array.
sobel_edgy_vertical_horizontal_stack = np.abs(
    sobel_edgy_vertical_horizontal_stack)
# Reshape to 2D, leaving only the largest value from either slice in the
# resulting array.
sobel_edgy_vertical_horizontal_stack = np.max(
    sobel_edgy_vertical_horizontal_stack,
    axis=2)
# Show the result.
plt.imshow(sobel_edgy_vertical_horizontal_stack);
_images/6d5dabe3702d6ea0b4ca8a6f0de1e498805f5efa8a370fc1f2f9681c378b8296.png

The more formal method is to use the following formula, where the filtered image containing the vertical edges (e.g. the horizontal gradients) is \(G_x\), and the filtered image containing the horizontal edges (e.g. the vertical gradients) is \(G_y\):

\( \large G_{\text{overall}} = \sqrt{ G_x^2 + G_y^2 } \)

You may recognise this as the Euclidean distance formula. It will give us the edges in both directions, pretty nifty!:

# Run the numbers...
sobel_overall = np.sqrt(sobel_edgy_vertical**2 + sobel_edgy_horizontal**2)
plt.imshow(sobel_overall);
_images/ff27be9f9ca02de209410981e2d788d12564b32fd156516a6e5e6cb891c7b53b.png

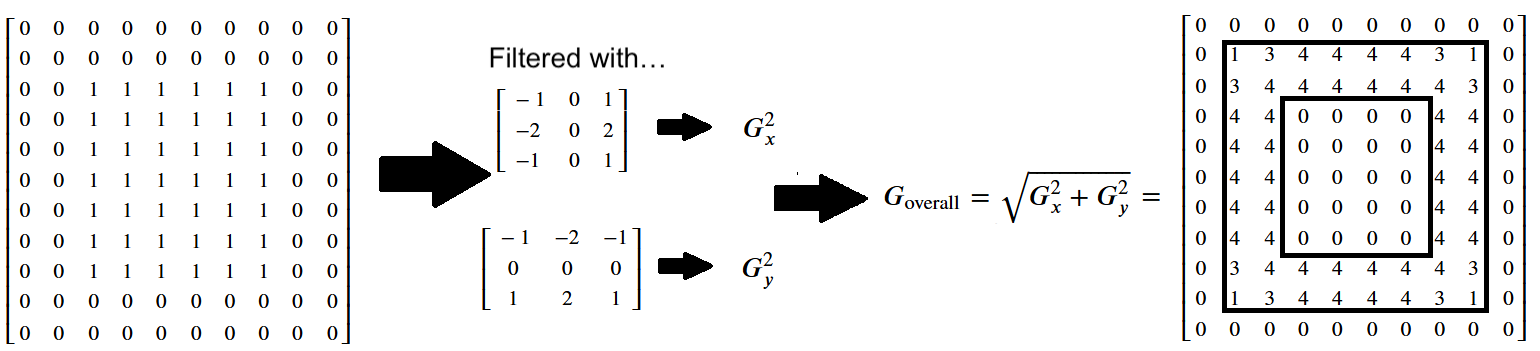

Below we show the pixel values in this Sobel-filtered image, with edges in both directions - the numbers in the final array have been rounded to keep it uncluttered:

Edge detection filters in skimage#

skimage contains a variety of edge detection filters, and makes it a breeze to implement them. You know the drill now, just pass skimage your NumPy image array and pray the dtypes are all in order (we kid, but also not…).

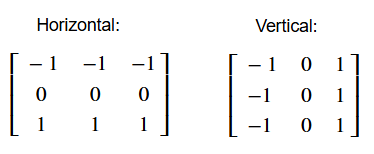

Remember the first edge detection kernels that we used above?:

Similar kernels are are used by ski.filters.prewitt() edge detection filter, which we implement in the cell below, on the edgy array:

# Prewitt filtering.
edgy_prewitt_ski = ski.filters.prewitt(edgy)
plt.imshow(edgy_prewitt_ski);

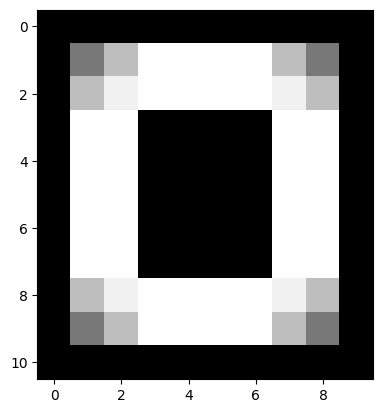

_images/95e70816fa9868db969bd822e3ad1128f3625b24651412c1d4a0bfec5cde0f88.png

Here we implement the Sobel filter using skimage:

# The same Sobel result, via `skimage`.`
edgy_sobel_ski = ski.filters.sobel(edgy)
plt.imshow(edgy_sobel_ski);
_images/ff27be9f9ca02de209410981e2d788d12564b32fd156516a6e5e6cb891c7b53b.png

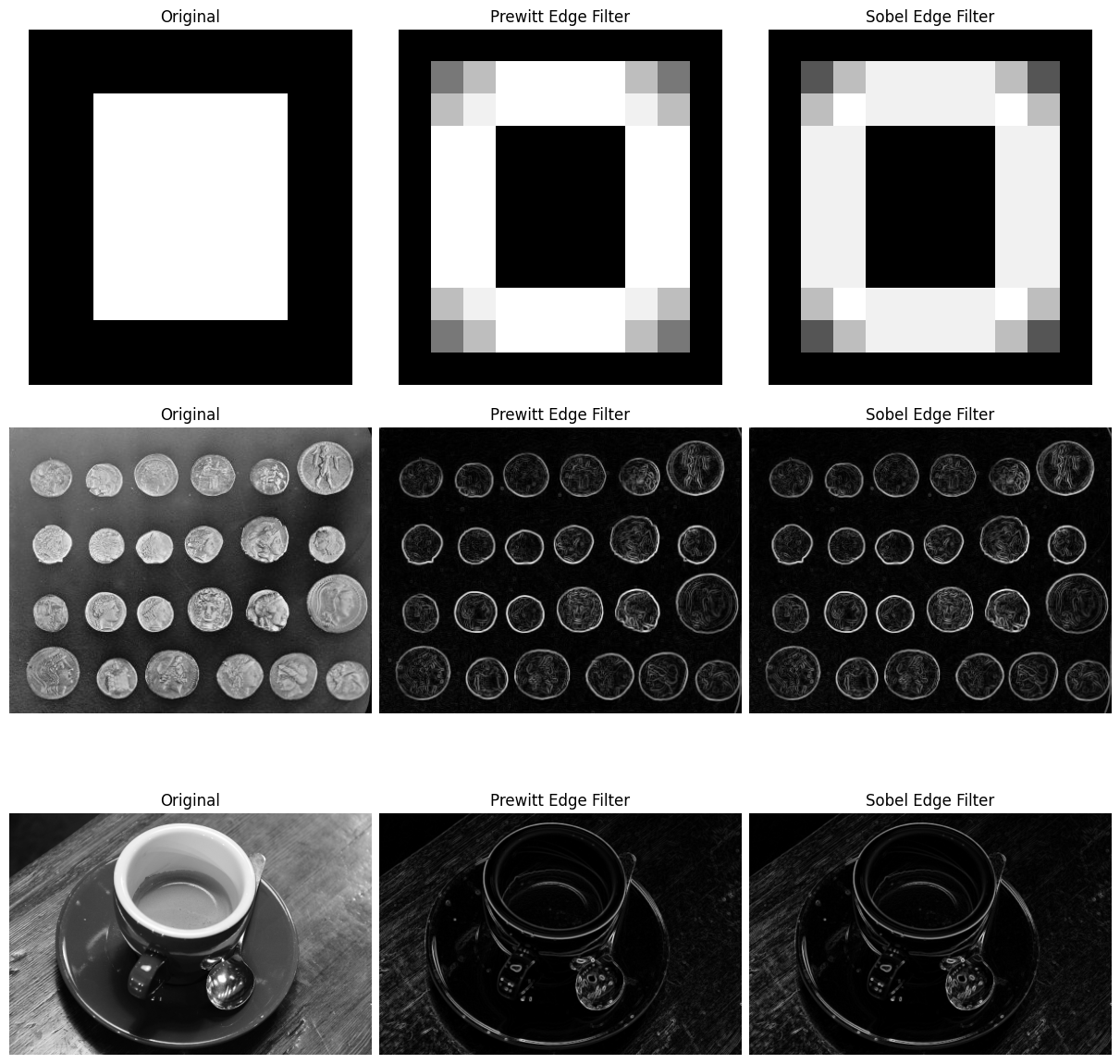

The plot below shows the effect of the two filters, side by side:

# Altogether...
coins = ski.data.coins()
prewitt_coins = ski.filters.prewitt(coins)
sobel_coins = ski.filters.sobel(coins)
prewitt_coffee = ski.filters.prewitt(coffee_gray)
sobel_coffee = ski.filters.sobel(coffee_gray)
fig, ax = plt.subplots(3, 3,
                       figsize=(12, 12),
                       constrained_layout=True)
ax[0, 0].imshow(edgy)
ax[0, 0].set_title('Original')
ax[0, 0].axis('off')
ax[0, 1].imshow(edgy_prewitt_ski)
ax[0, 1].set_title('Prewitt Edge Filter')
ax[0, 1].axis('off')
ax[0, 2].imshow(edgy_sobel_ski)
ax[0, 2].set_title('Sobel Edge Filter')
ax[0, 2].axis('off')
ax[1, 0].imshow(coins)
ax[1, 0].set_title('Original')
ax[1, 0].axis('off')
ax[1, 1].imshow(prewitt_coins)
ax[1, 1].set_title('Prewitt Edge Filter')
ax[1, 1].axis('off')
ax[1, 2].imshow(sobel_coins)
ax[1, 2].set_title('Sobel Edge Filter')
ax[1, 2].axis('off')
ax[2, 0].imshow(coffee_gray)
ax[2, 0].set_title('Original')
ax[2, 0].axis('off')
ax[2, 1].imshow(prewitt_coffee)
ax[2, 1].set_title('Prewitt Edge Filter')
ax[2, 1].axis('off')
ax[2, 2].imshow(sobel_coffee)
ax[2, 2].set_title('Sobel Edge Filter')
ax[2, 2].axis('off')
plt.show();
_images/b533f61783efafeed82478eabbfe690856de39300f8de9dc83f54dbee5ecc21c.png

Kernels, correlation and convolution#

We have used and explained the ndi.correlate function to apply the kernel filter.

We should say here that we could also have used ndi.convolve to achieve the same effect. Convolution is another way of thinking of the same fundamental operation, of applying a kernel at each pixel.

Here we will show that this is the same underling operation. For reasons that will soon become clear, this time we’re going to use a kernel that is not left-right or up-down symmetric. Please bear with us:

odd_kernel = np.array([[-1.,  3.,  1.],
                       [ 0.,  2., -2.],
                       [ 2., -3., -2.]])

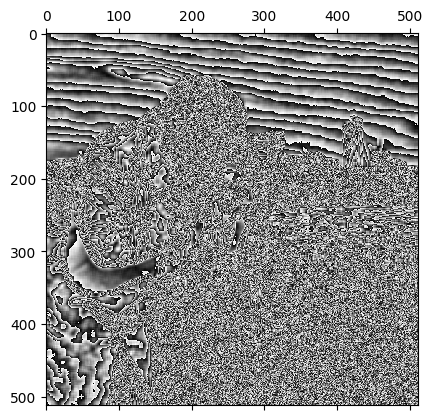

Next we’ll make a floating point image to apply our kernel to:

# Floating point version of camera image.
f_camera = ski.data.camera().astype(float)
f_camera
array([[200., 200., 200., ..., 189., 190., 190.],
       [200., 199., 199., ..., 190., 190., 190.],
       [199., 199., 199., ..., 190., 190., 190.],
       ...,
       [ 25.,  25.,  27., ..., 139., 122., 147.],
       [ 25.,  25.,  26., ..., 158., 141., 168.],
       [ 25.,  25.,  27., ..., 151., 152., 149.]], shape=(512, 512))

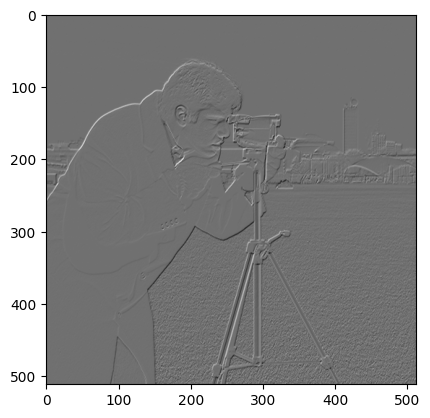

Now we’ll use our usual ndi.correlate operation to apply the kernel.

odd_image = ndi.correlate(f_camera, odd_kernel)
odd_image
array([[   2.,    5.,    1., ...,   -4.,    1.,    0.],
       [   5.,    3.,   -1., ...,   -2.,    1.,    0.],
       [  -1.,   -2.,    1., ...,    0.,    0.,    0.],
       ...,
       [   1.,   -2.,    6., ...,   -8.,  -34.,  -47.],
       [   0.,   -4.,    3., ...,  -72., -132.,   25.],
       [   0.,   -7.,    0., ...,    5.,  -13.,   90.]], shape=(512, 512))
plt.imshow(odd_image)
<matplotlib.image.AxesImage at 0x7f729856bed0>
_images/49e2f49040c4adf9f1ac2ca7a7fd69c67280f496ed46d471790479d1a8df7eec.png

Now — ndi.convolve does not give use the same output when applying the same kernel. You’ll soon see why.

# Application of convolution using the same kernel.
conv_img = ndi.convolve(f_camera, odd_kernel)
conv_img
array([[   1.,   -2.,   -4., ...,    5.,    4.,    0.],
       [  -3.,   -5.,   -4., ...,    5.,    2.,    0.],
       [  -2.,    2.,    3., ...,    0.,    0.,    0.],
       ...,
       [   2.,   -2.,    1., ..., -107.,  -44.,   64.],
       [   0.,    2.,    0., ...,  -42.,   74.,  113.],
       [   0.,    0.,    5., ...,  -11.,   57.,   -6.]], shape=(512, 512))

Notice from the display above that the numbers in this image differ from those in odd_image — the result of applying ndi.correlate with this kernel.

# Applying ndi.convolve with same kernel gives different result.
np.all(conv_img == odd_image)
np.False_

However, ndi.convolve is applying the kernel in a different way. Specifically, it is applying the same calculations as ndi.correlate with a kernel that has been flipped on both left-right and up-down axes:

flipped_kernel = np.fliplr(np.flipud(odd_kernel))
flipped_kernel
array([[-2., -3.,  2.],
       [-2.,  2.,  0.],
       [ 1.,  3., -1.]])

If we use this flipped kernel with ndi.convolve, we get the same result when we applied the original kernel with ndi.correlate.

reconv_img = ndi.convolve(f_camera, flipped_kernel)
np.all(reconv_img == odd_image)
np.True_

The difference in ndi.correlate and ndi.convolve are just differences in the interpretation of the kernel. The flipped interpretation of convolution comes from its roots in signal (1D) processing; in convolution, we often think of the kernel as a response to an impulse, in which case applying the kernel in an efficient way does require us to flip the kernel from left to right. See this intuitive explanation of convolution for more on this idea.

Summary#

This page has showed how to use various kernels to filter images, using numpy, scipy and skimage. We have seen how changing the kernel can alter the filtering process to achieve different aims, like blurring/smoothing and edge detection. On the next page we will explore different types of filters, which do not use kernel methods to implement their filtering effects.

References#

Adapted from:

with further inspiration from:
